5/8" Bearing UCF202-10 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

5/8" Bearing UCF202-10 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

$47.99 USD
$73.00 USD $47.99 USD
セール 売り切れ

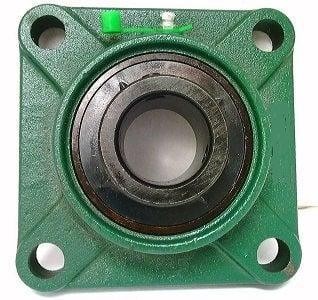

UCF202-10 Four Bolt Flange Unit
With black Insert
5/8" inch Inner Diameter


UCF202-10 Four Bolt Flange Unit with Black Oxide plated Insert, bearing is Set Screw Type, Inner Diameter is 5/8" inch

  • UCF202-10 Ball Bearing with Black Oxide plated Insert
  • Flange Mounted Bearing
  • Bolt Size: 3/8" inch
  • Shaft Diameter: 5/8" inch
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: UC202-10
  • Housing No: F204
  • Quantity: 1 Bearing

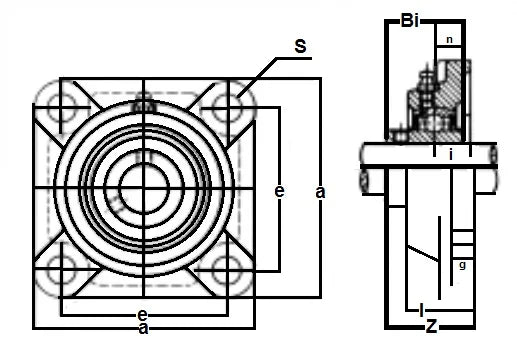

Dimensions (inches)
a e i g l s z Bi n
3-3/8" 2-33/64" 19/32" 15/32" 1" 15/32" 1-5/16" 7/32" 1/2"
