9/16" HCFL202-9 2-Bolt Flanged Cast Housing Mounted Bearing - Eccentric Collar Lock

HCFL202-9 Flanged Mounted Bearing
✔️ 9/16" ID – Eccentric Lock, Cast Housing, 1-Piece

This is a single HCFL202-9 flanged mounted bearing with a 9/16" inner diameter and an eccentric collar lock for secure shaft attachment. Built for industrial and agricultural applications where vibration resistance and easy install are key.

✅ Inner diameter: 9/16"
✅ Mount style: 2-bolt flange
✅ Lock type: Eccentric collar lock
✅ Housing: Cast iron
✅ Bearing type: Pre-lubricated ball bearing
✅ Dynamic load rating: 12,900 N
✅ Static load rating: 6,270 N
✅ Quantity: 1 bearing

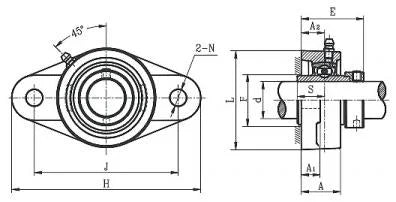

Dimensions table:

💡 What’s the benefit of using a flanged bearing with an eccentric lock?
Flanged bearings provide stable shaft support and simplify installation. The eccentric lock mechanism offers a tight grip on the shaft, ideal for setups with reversing motion or vibration, like conveyors, mowers, and machinery.

Need a secure, easy-to-install solution for your rotating gear? This HCFL202-9 is ready to bolt in - grab one today and keep your systems locked in and running strong!
