FYH Bearing 17mm UCT203E Take Up Mounted Bearing

FYH Bearing 17mm UCT203E Take Up Mounted Bearing

通常価格 $59.99 USD
通常価格 $92.00 USD セール価格 $59.99 USD
セール 売り切れ
UCT203E FYH Bearing
Take Up Mounted Bearing
Cylindrical bore (with set screws)
17mm Inner Diameter



The take-up unit fits into a take-up frame and allows for linear adjustment along the plane of the unit. Both international and domestic slot versions are available.Applications are Belt conveyor and it is used where the shaft distance must be adjusted.

  • UCT203E Bearing
  • Take Up Mounted Bearing
  • Basic Load (Cr): 12,800 N
  • Basic Load (Cor): 6,650 N
  • Bearing No: UC203
  • Quantity: One bearing

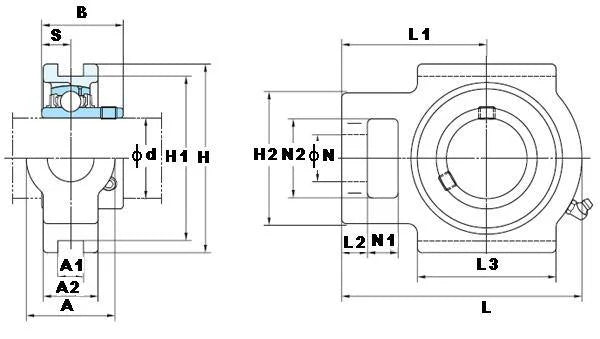

Dimensions (mm)
d A A1 A2 H H1 H2 L L1 L2 L3 N N1 N2 B S
17 32 13.5 21 89 76.2 51 94 61 10 51 19 16 32 31 12.7
