FYH Bearing 20mm UCT204E Take Up Mounted Bearing

FYH Bearing 20mm UCT204E Take Up Mounted Bearing

$58.99 USD
$90.00 USD $58.99 USD
セール 売り切れ

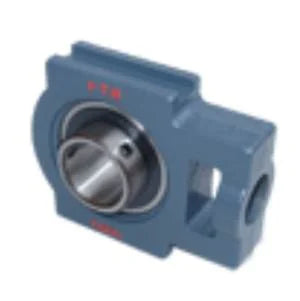

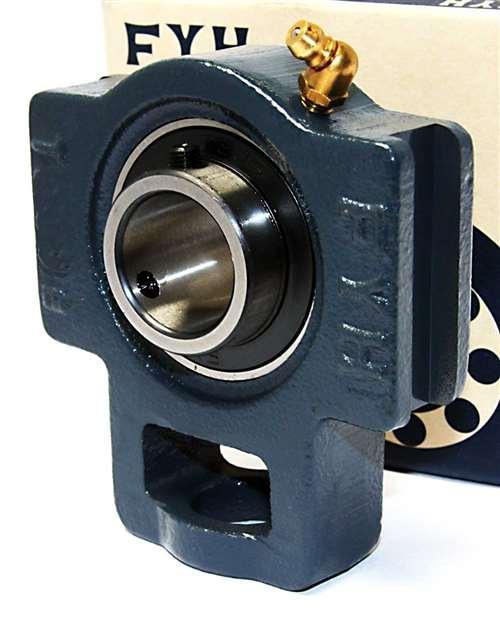

UCT204E FYH Bearing
Take Up Mounted Bearing
Cylindrical bore (with set screws)
20mm Inner Diameter Bearing

The take-up unit fits into a take-up frame and allows for linear adjustment along the plane of the unit. Both international and domestic slot versions are available.Applications are Belt conveyor and it is used where the shaft distance must be adjusted.

  • UCT204E Bearing
  • Take Up Mounted Bearing
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: UC204
  • Quantity: One bearing

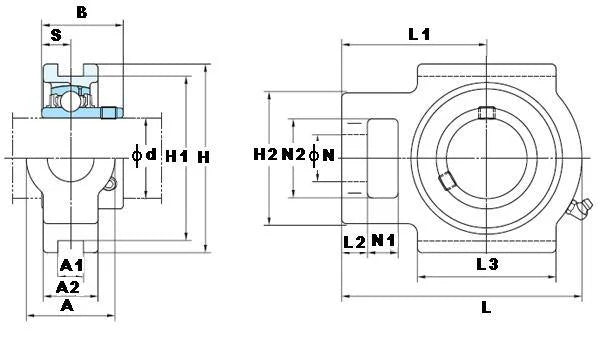

Dimensions (mm)
d A A1 A2 H H1 H2 L L1 L2 L3 N N1 N2 B S
20 32 13.5 21 89 76.2 51 94 61 10 51 19 16 32 31 12.7
