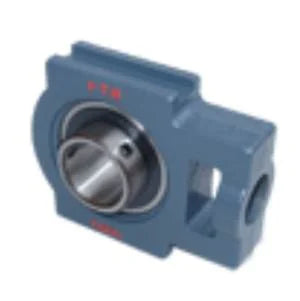

FYH Made in Japan Bearing 60mm UKT313+HE2313X Mounted Bearing

FYH Made in Japan Bearing 60mm UKT313+HE2313X Mounted Bearing

$664.99 USD
$1,017.00 USD $664.99 USD
セール 売り切れ
UKT313 FYH Bearing
Mounted Bearing
Cylindrical bore (with set screws)
60mm Inner Diameter Bearing

The take-up unit fits into a take-up frame and allows for linear adjustment along the plane of the unit. Both international and domestic slot versions are available.Applications are Belt conveyor and it is used where the shaft distance must be adjusted.

  • UKT313 + HF2313 Adaptor Bearing
  • Take Up Mounted Bearing
  • Basic Load (Cr): 92700 N
  • Basic Load (Cor): 59900 KN
  • Quantity: One bearing

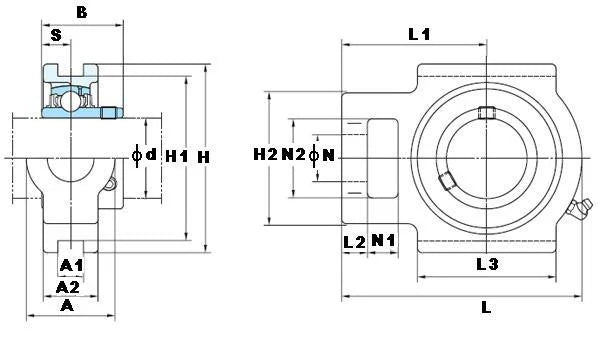

Dimensions (mm)
d A A1 A2 H H1 H2 L L1 L2 L3 N N1 N2 B
60 80 26 50 190 170 116 238 146 25 134 43 32 70 65
