GER207-20-ZSFF Insert GRIP-IT 360 Degree 1-1/4" Bearing
GER207-20-ZSFF Insert GRIP-IT 360 Degree 1-1/4" Bearing
通常価格
$241.99 USD
通常価格
$370.00 USD
セール価格
$241.99 USD
単価
/
あたり
受取状況を読み込めませんでした
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
| GER207-20-ZSFF Bearing Insert GRIP-IT 360 Degree Locking Set Screw Locking 1 1/4" Inch Inner Diameter |
|

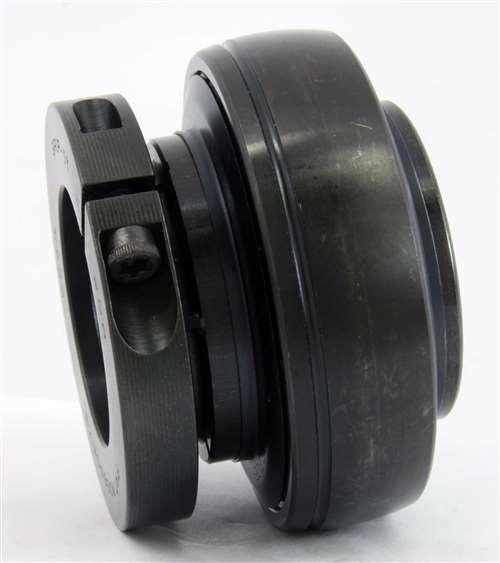

GER207-20-ZSFF Bearing Insert GRIP-IT 360 Degree Locking, bearing is standard load capacity, bearing is Wide inner ring with Cylindrical outer ring and snap ring, bearing has relubrication groove with oil hole on side opposite of locking callar, bearing is black oxide plated inner and outer rings, bearing is nylon patched class 3A set screw, Standard seal is R-seal.
|

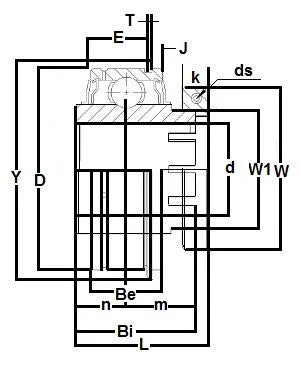

| Dimensions (Inches) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | L | n | m | E | W1 | J | T | Y | K | W | ds (UNF-Thread) |
| 2-53/64" | 1-11/16" | 15/16" | 1-7/8" | 11/16" | 1" | 57/64" | 1-27/32" | 1/8" | 5/64" | 3-3/32" | 7/16" | 2-37/64" | 10-24x3/4 |
