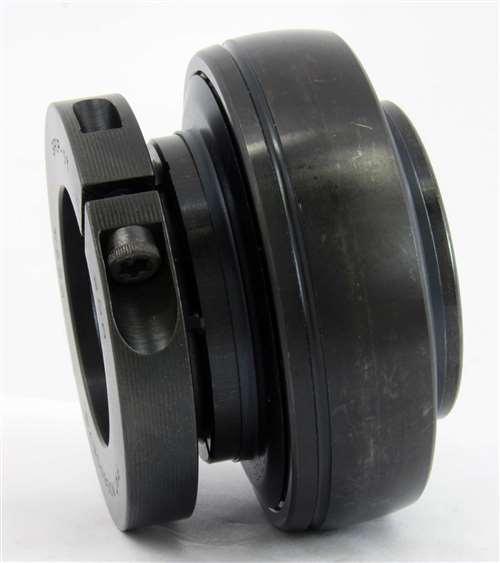

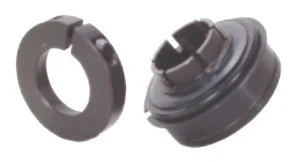

GER209-26-ZMKFF Insert GRIP-IT 360 Degree 1 5/8 Inch Bearing
GER209-26-ZMKFF Insert GRIP-IT 360 Degree 1 5/8 Inch Bearing
通常価格
$343.99 USD
通常価格
$526.00 USD
セール価格
$343.99 USD
単価
/
あたり
受取状況を読み込めませんでした
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
GER209-26-ZMKFF Bearing Insert GRIP-IT 360 Degree Locking Set Screw Locking 1 5/8" Inch Inner Diameter |
GER209-26-ZMKFF Bearing Insert GRIP-IT 360 Degree Locking, bearing is standard load capacity, bearing is Wide inner ring with Cylindrical outer ring and snap ring, bearing is manufactured with light grease fill to ensure free running and low drag, bearing is black oxide plated inner and outer rings, bearing is nylon patched class 3A set screw, Standard seal is R-seal.
|

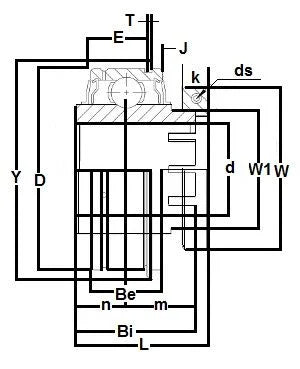

| Dimensions (Inches) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | L | n | m | E | W1 | J | T | Y | K | W | ds (UNF-Thread) |
| 3-11/32" | 1-15/16" | 1-3/32" | 2-1/8" | 3/4" | 1-3/16" | 57/64" | 2.256" | 1/8" | 5/64" | 3-39/64" | 29/64" | 2-15/16" | 10-24x3/4 |
