NSC-15-12-S NBK Steel Collar - Set Screw Hex Socket SUSXM7 Type - NBK - One Collar Made in Japan

NSC-15-12-S NBK Steel Collar - Set Screw Hex Socket SUSXM7 Type - NBK - One Collar Made in Japan

$48.99 USD
$75.00 USD $48.99 USD
セール 売り切れ

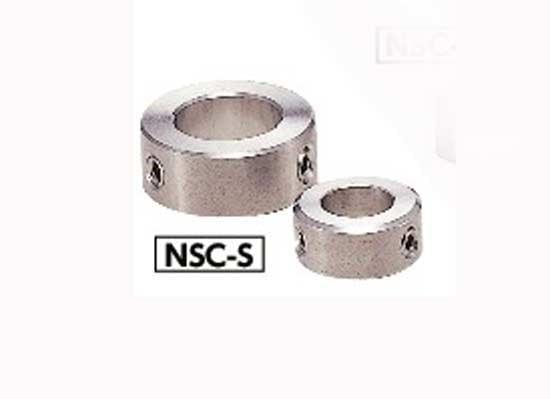

NSC-15-12-S NBK Steel Collar - Set Screw Hex Socket SUSXM7 Type
Main body (Stainless Steel SUS304)
One Collar
NBK - Made in Japan

Characteristics:
  • Standard type set collar.
  • It is attached to the shaft by the set screws.
  • Chamfer on one side end face is larger (bore diameter 8 mm or above).
  • This avoids interference of the set collar with the external wheel when the bearing is fixed..

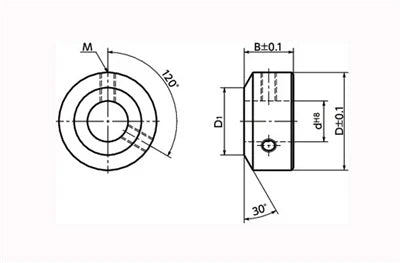

Part Number d B D D1 M* 1
NSC-15-12-S-NBK 15mm 12mm 28mm 24mm
M5
＊1: If d dimension is 6 or below, one point.
