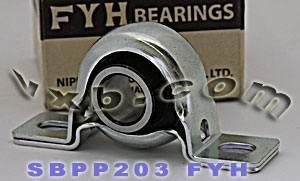

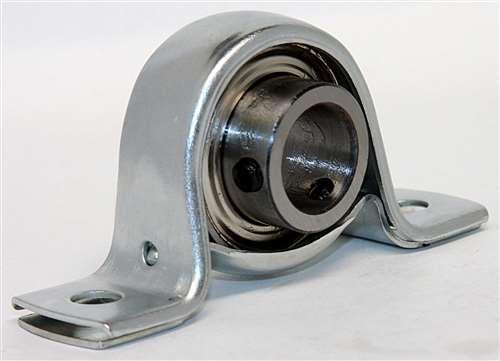

SBPP203 FYH Bearing 17mm Steel pillow type Mounted Bearing

SBPP203 FYH Bearing 17mm Steel pillow type Mounted Bearing

$39.99 USD
$61.00 USD $39.99 USD
セール 売り切れ
SBPP203 FYH Bearing
Steel plate pillow Bearing
Cylindrical bore (with set screws)
17mm Inner Diameter Bearing

This lightweight pillow type unit for minimal loads comprises a standard duty ball bearing and the pressed steel plate housing.Applications : Lightweight conveyor, environments exposed to light load and low speed rotation

  • SBPP203 Bearing
  • Steel plate pillow units
  • Bolt size: M8
  • Basic Load (Cr): 9,550 KN
  • Basic Load (Cor): 4,800 KN
  • Bearing No: SB203
  • Quantity: 1 Bearing

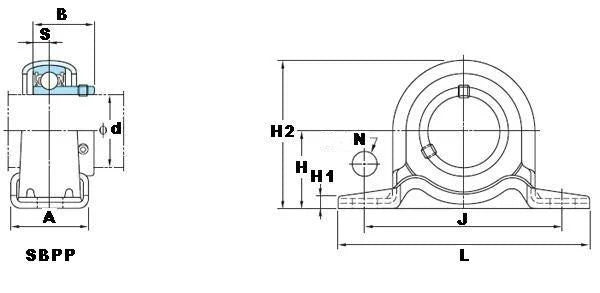

Dimensions (mm)
d H L A J N H1 H2 S B
17mm 22.2mm 86mm 25mm 68mm 9.5mm 3.2mm 43.8mm 6mm 22mm
