SER-30 Bearing Insert 1 7/8 Inch Mounted
SER-30 Bearing Insert 1 7/8 Inch Mounted
通常価格
$172.99 USD
通常価格
$265.00 USD
セール価格
$172.99 USD
単価
/
あたり
受取状況を読み込めませんでした
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
SER-30 Bearing Insert Set Screw Locking 1 7/8" Inch Inner Diameter |
SER-30 Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with cylindrical outer ring and snap ring, Bearing has relubrication groove with oil hole on side opposite of set screws, bearing has anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A Set Screws are standard, Standard seal is R-Seal.
|

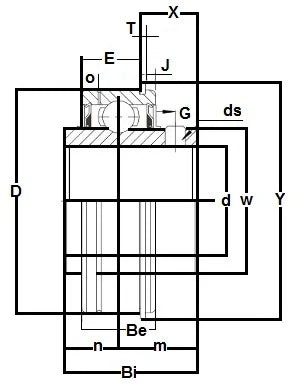

| Dimensions (Inches) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | n | m | E | W | o | T | J | G | Y | X | ds(UNF-Thread) |
| 3-35/64" | 2-1/32" | 1-1/8" | 3/4" | 1-9/32" | 57/64" | 2-7/16" | 19/64" | 7/64" | 1/8" | 3/8" | 3-51/64" | 31/32" | 3/8-24x3/8 |
