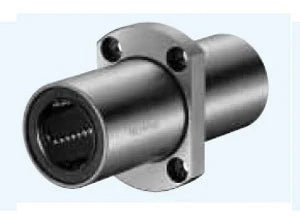

SMSTC20UU NB 20mm Slide Bush Bushings Miniature Motion Linear Bearing

SMSTC20UU NB 20mm Slide Bush Bushings Miniature Motion Linear Bearing

通常価格 $354.99 USD
通常価格 $543.00 USD セール価格 $354.99 USD
セール 売り切れ
SMSTC20UU NB Two Side Cut Center Flange
Anticorrosion Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


SMSTC20UU NB Two Side Cut Center Flange Linear Anticorrosion Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • SMSTC20UU NB Bearing
  • Linear Slide Bush
  • Retainer Material: Steel
  • Bearing Inner Diameter: 20mm
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 1400 N
  • Static Load Rating Cor: 2740 N

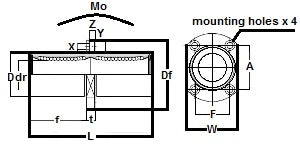

Major Dimensions
dr D L Df W t A F X x Y x Z
mm tolerance mm tolerance
20 0-12 32 0-19 80 54 38 8 36 24 6.6 x 11 x 6.1
