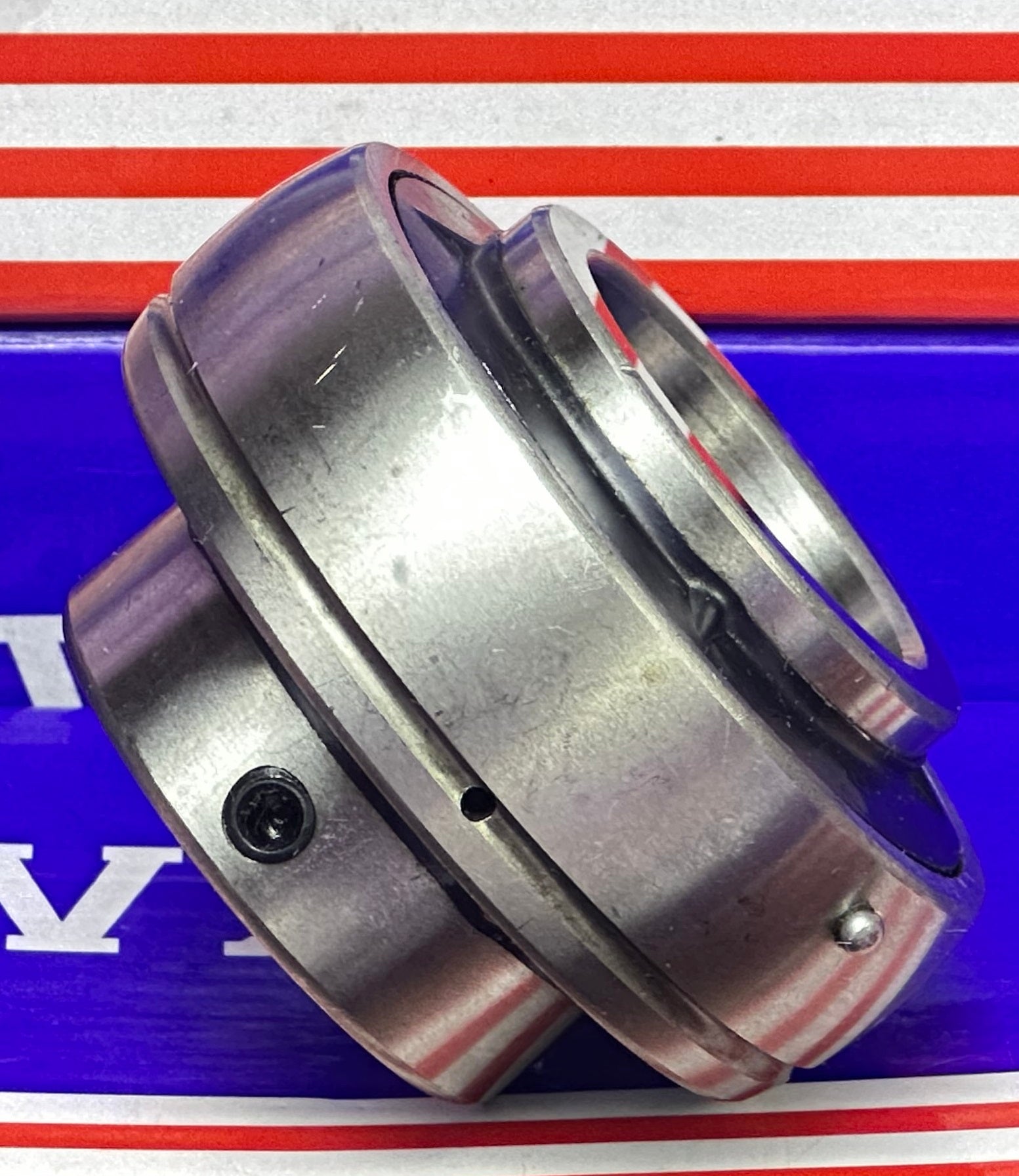

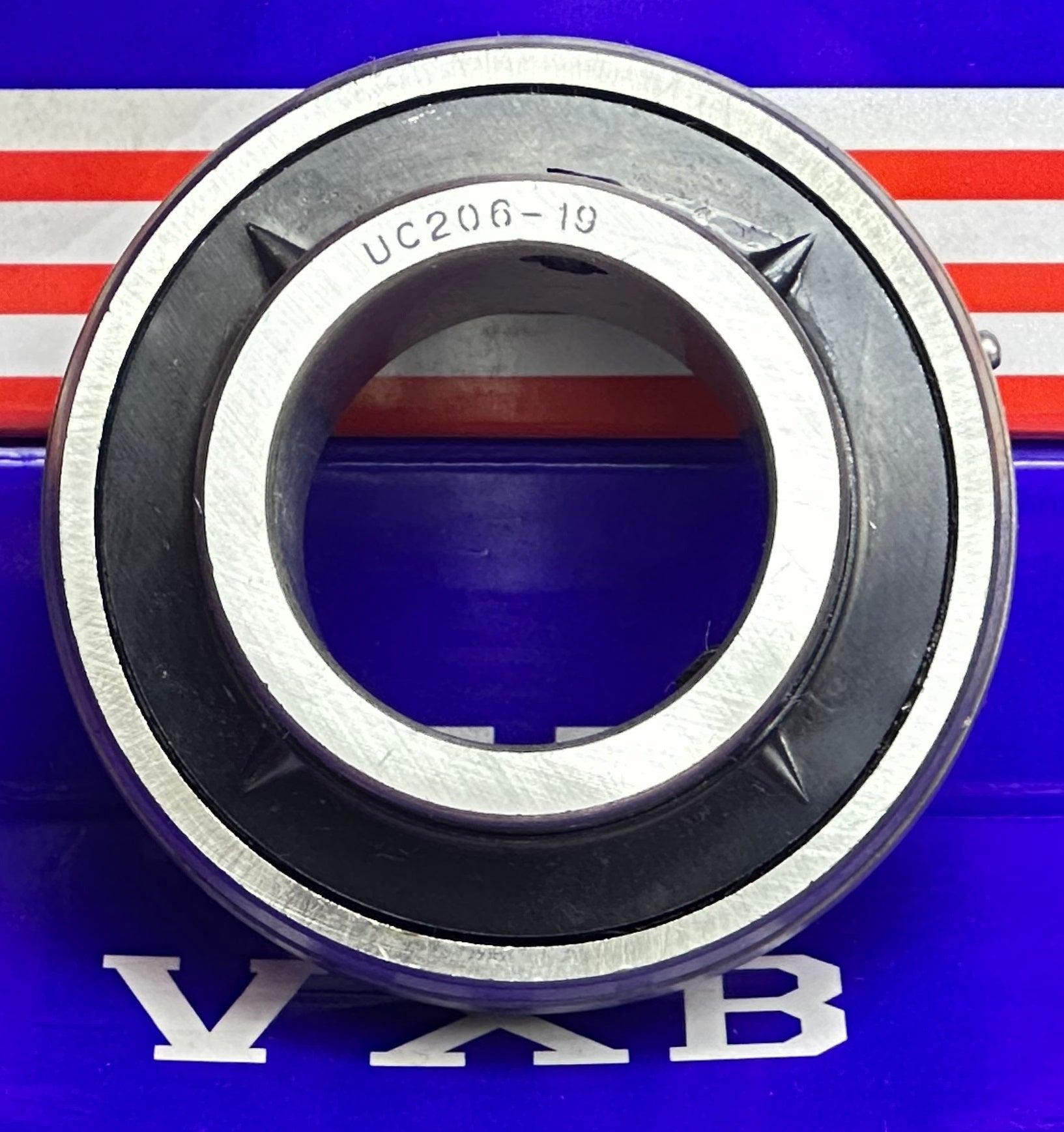

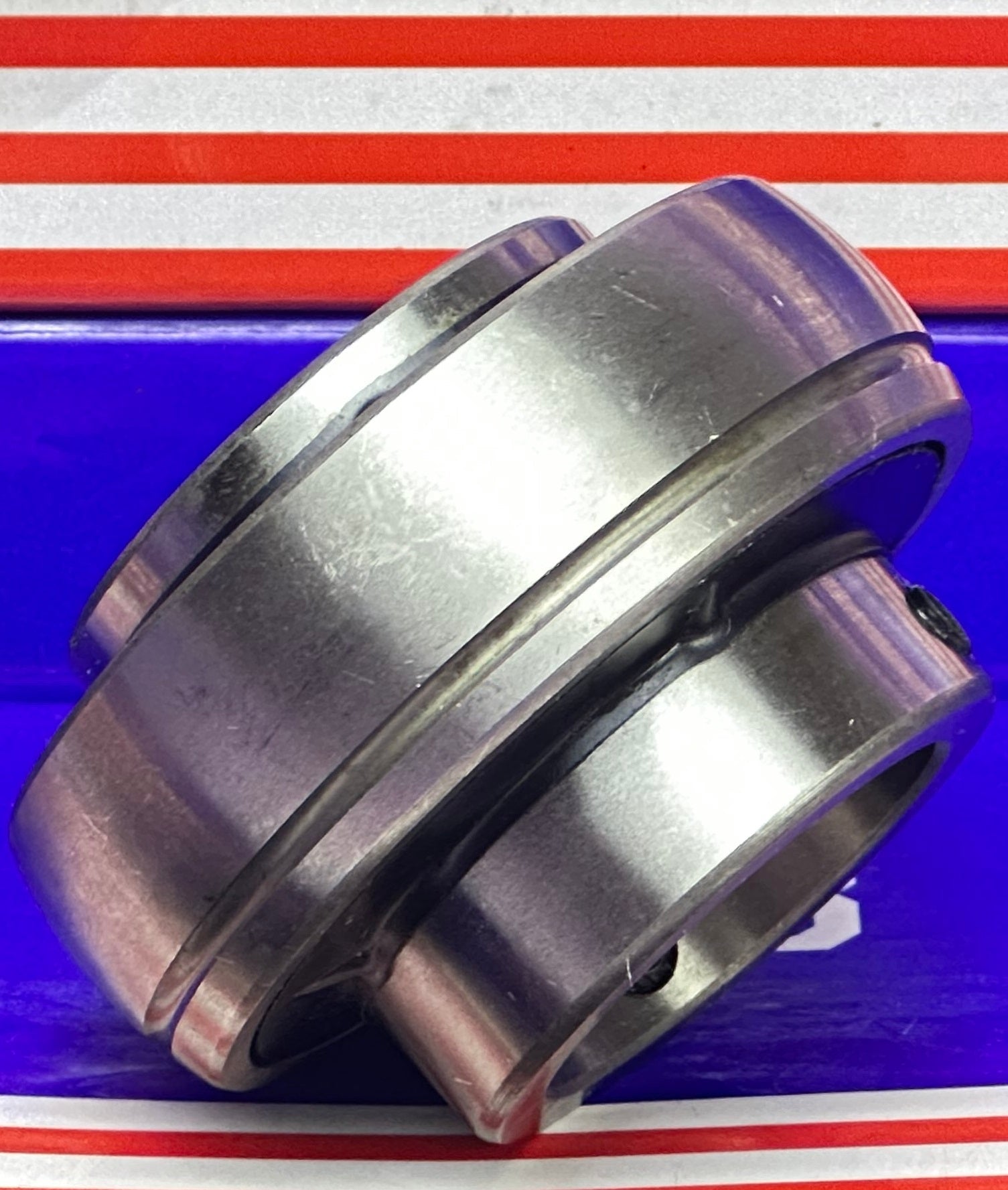

UC206-19 Bearing Insert 1 3/16 Inch Mounted

UC206-19 Bearing Insert 1 3/16 Inch Mounted

通常価格 $34.99 USD
通常価格 $54.00 USD セール価格 $34.99 USD
セール 売り切れ



UC206-19 Bearing Insert
Set Screw Locking
1 3/16" Inch Inner Diameter



UC206-19 Bearing Insert, Bearing is standard duty, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.

  • UC206-19 Bearing
  • Cylindrical Carttridge Ball Bearing
  • Shaft Diameter: 1 3/16" Inch
  • Dynamic Load Rating: 19127 N
  • Static Load Rating: 11120 N
  • Quantity: 1 Bearing
  • Ball Bearing

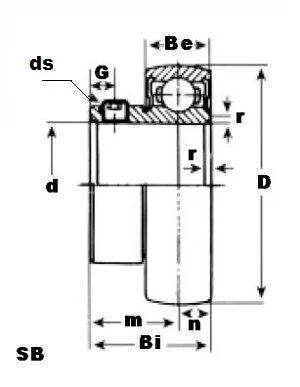

Dimensions (Inches)
D Bi Be r n m G W ds(UNF-Thread)
2-7/16" 1-1/2" 45/64" 0.059" 5/8" 7/8" 7/32" 1-9/16" 1/4-28x1/4
