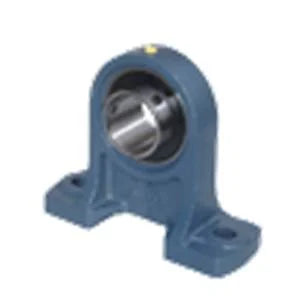

UCPH209-27 Bearing 1 11/16" Pillow Block Mounted Bearing

UCPH209-27 Bearing 1 11/16" Pillow Block Mounted Bearing

$51.99 USD
$80.00 USD $51.99 USD
セール 売り切れ

UCPH209-27 Bearing
Pillow Block Bearing
Cylindrical bore (with set screws)
1-11/16" Inner Diameter Bearing

This unit is the high centerheight pillow type unit, It has a great resistance to impact loads. It is a suitable for machinery where greater base to center heights are required.Applications are Printing machinery and spinneret.

  • UCPH209-27 Bearing
  • high centerheight pillow unit
  • Bolt Size: 1/2"
  • Basic Load (Cr): 34.1 KN
  • Basic Load (Cor): 21.3 KN
  • Bearing No: UC209-26
  • Quantity: One bearing

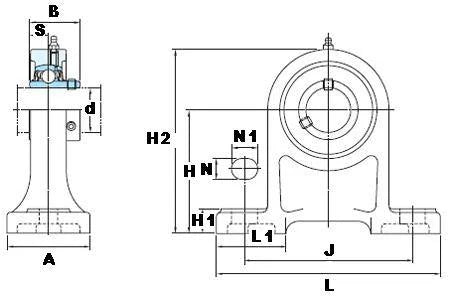

Dimensions (Inches)
d H L A J N N1 H1 H2 L1 B S
1-11/16" 4-9/64" 7-15/32" 2-3/4" 5-3/4" 21/32" 13/16" 25/32" 6-7/32" 2-9/32" 1.937" 0.748"
