12mm Bearing/Bushing LMF12UU Linear Motion

12mm Bearing/Bushing LMF12UU Linear Motion

$9.99 USD
$46.99 USD $9.99 USD
할인 품절

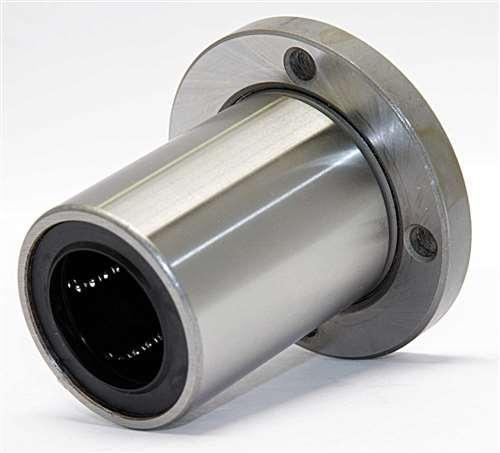

LMF12UU Linear Ball Bearing
Works with 12mm Shafts


LMF12UU Linear Ball Bearing works with a 12mm Shafts, Size is 12mm x 21mm x 30mm, the inner Diameter is 12mm, the outer Diameter is 21mm and the Length is 30mm, Bearing has Built-in Rubber Seals.
  • LMF12UU Bearing
  • Linear Ball Bearing
  • Size: 12mm x 21mm x 30mm
  • Inner Diameter: 12mm
  • Outer Diameter: 21mm
  • Length: 30mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 510 N
  • Static load rating Cor: 784 N

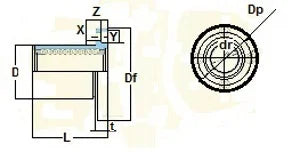

Dimensions(mm)
dr D L t Dp X Y Z
mm tolerance mm tolerance mm tolerance
12 0-9 21 0-16 42 30 6 32 4.5 7.5 4.1
