FYH Bearing UCFB201-8 1/2 Three bolt Flanged Mounted Bearing

FYH Bearing UCFB201-8 1/2 Three bolt Flanged Mounted Bearing

$61.99 USD
$95.00 USD $61.99 USD
할인 품절

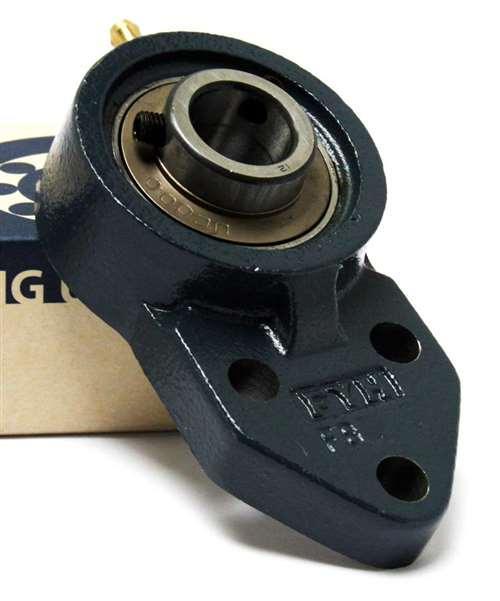

UCFB201-8 FYH Bearing
Three bolt Flanged Bearing
Cylindrical bore (with set screws)
1/2" Inner Diameter Bearing

This hanger bearing unit is fitted with straight pipe threads and is available in both international and domestic thread configurations.Application is Screw conveyor

  • UCFB201-8 Bearing
  • Three bolt Flanged Bearing
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: UC201-8
  • Quantity: One bearing

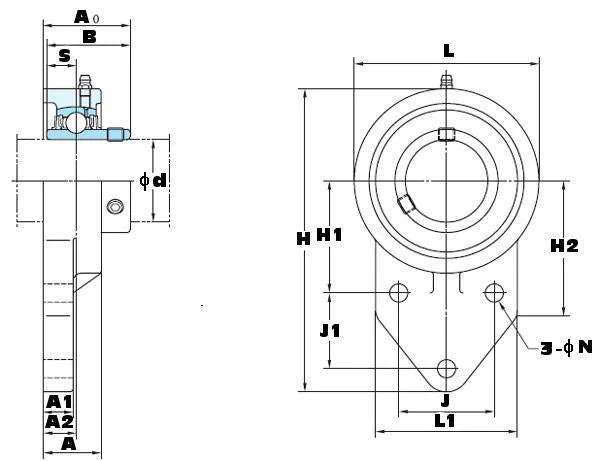

Dimensions (Inches)
d H L A J J1 N H1 H2 L1 A1 A2 A0 B S
1/2" 4-11/32" 2-7/16" 15/16" 1-17/64" 1-11/16" 3/8" 1-21/32" 2-1/16" 2-1/16" 1/2" 17/32" 1-1/4" 1.22" 1/2"
