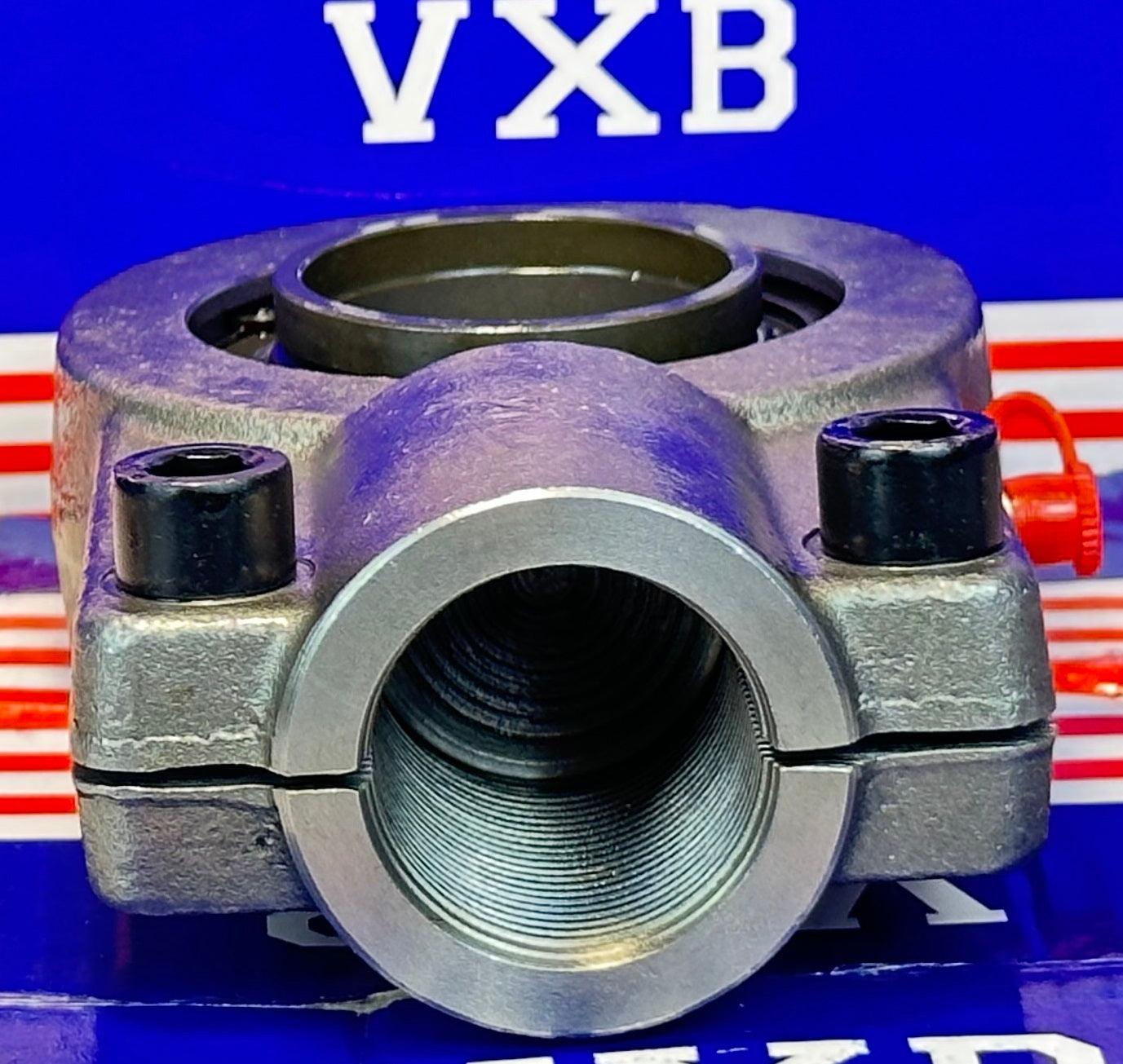

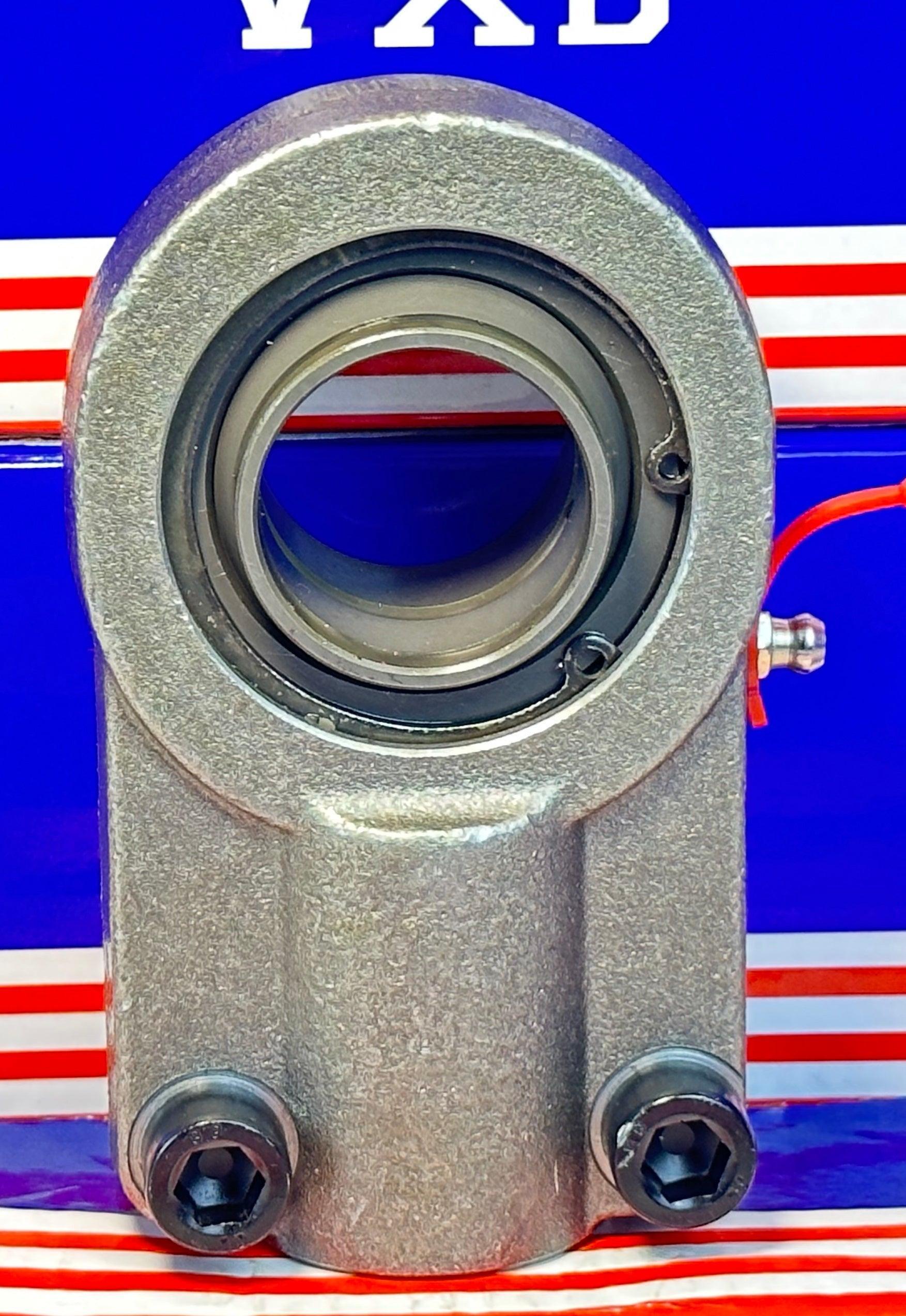

GIHN-K20LO Spherical Rod End - Weld-On Shank - Locking Plain Bearing

GIHN-K20LO Spherical Rod End Bearing
✔️ 20mm ID - M16x1.5 Female Thread - Steel-on-Steel - 1 Unit

The GIHN-K20LO is a female-threaded spherical rod end designed for 20mm shafts, featuring steel-on-steel sliding contact surfaces for strength and wear resistance. Ideal for use in hydraulic cylinders, linkage systems, machinery arms, and motion control assemblies.

✅ Inner diameter (bore): 20mm
✅ Outer diameter: 47mm
✅ Width: 20mm
✅ Thread: M16x1.5 (female, 6H tolerance)
✅ Contact surfaces: Steel/Steel
✅ Type: Locking plain bearing with weld-on housing
✅ Brand: VXB Bearing
✅ Quantity: 1 rod end

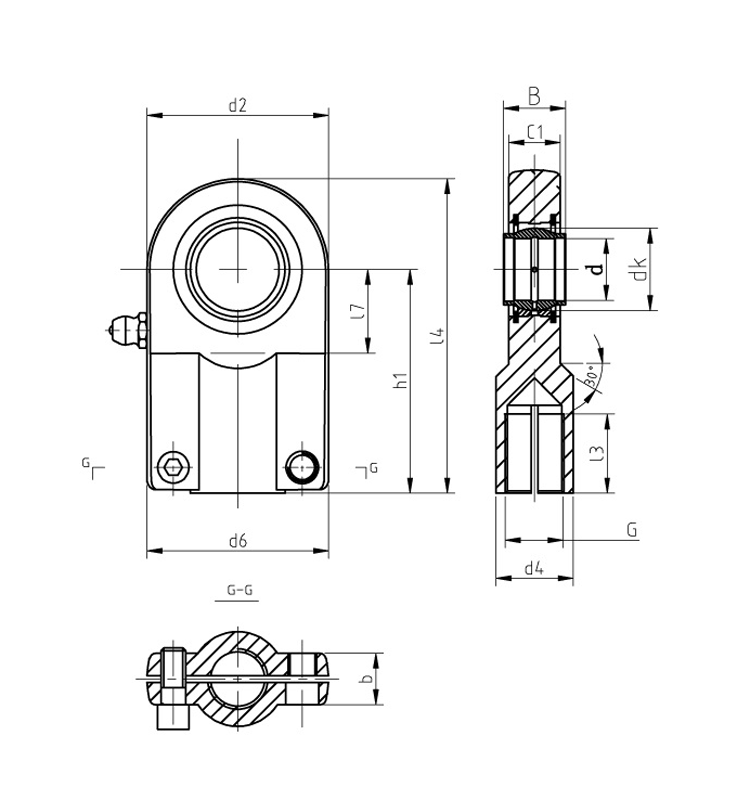

Dimensions Table (mm):

💡 Why are steel-on-steel rod ends preferred in demanding mechanical systems?
Steel-on-steel rod ends deliver excellent performance under high loads and tough conditions. Their rigid structure and sliding surface design provide precision movement while resisting deformation and wear over time.

Ready to take on the load - add the GIHN-K20LO to your setup and get dependable motion control where it matters!
