SMST8WUU NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing

SMST8WUU NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing

$176.99 USD
$271.00 USD $176.99 USD
할인 품절

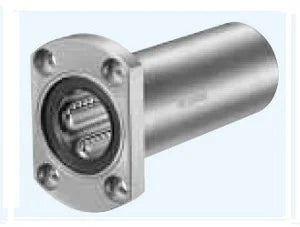

SMST8WUU NB Two Side Cut Double Wide
Flange Anticorrosion Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

SMST8WUU NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • SMST8WUU NB Bearing
  • Linear Slide Bush
  • Retainer Material: Steel
  • Bearing Inner Diameter: 8mm
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 431 N
  • Static Load Rating Cor: 784 N

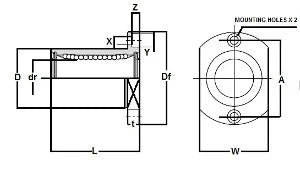

Major Dimensions
dr D L Df W t A X x Y x Z
mm tolerance mm tolerance
8 0-10 15 0-13 45 32 21 5 24 3.5 x 6 x 3.1
