TRK25UU NB 25mm Slide Bush Bushings Motion Linear Bearing

TRK25UU NB 25mm Slide Bush Bushings Motion Linear Bearing

$429.00 USD
$1,137.00 USD $429.00 USD
할인 품절

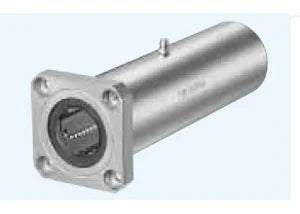

TRK25UU NB Triple Wide Square Flange Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


 TRK25UU NB Triple Wide Square Flange Type Miniature Slide Bush, The retainer material is steel, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
  • TRK25UU NB Bearing
  • Linear Slide Bush
  • Bearing Inner Diameter: 25mm
  • Retainer Material: steel
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 1560 N
  • Static Load Rating Cor: 3140 N

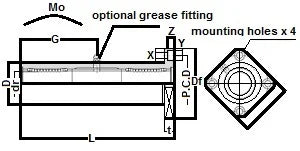

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
25 0-18 45 0-25 165 74 10 60 6.6 x 11 x 6.1
