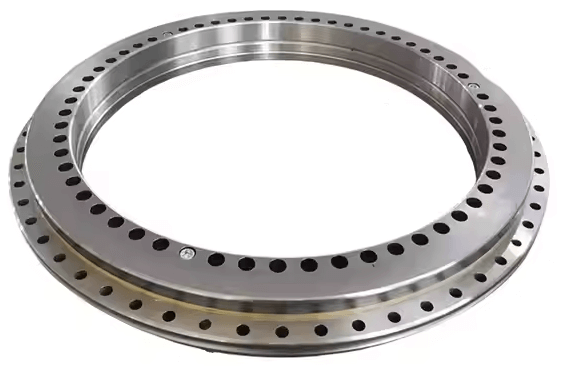

YRT650 High Precision Sealed Turntable Slewing Bearing
YRT650 High Precision Sealed Turntable Slewing Bearing
정가
$9,045.00 USD
정가
$24,120.00 USD
할인가
$9,045.00 USD
단가
단위
픽업 사용 가능 여부를 로드할 수 없습니다.
YRT650 Turntable bearing comes pre lubricated with grease, is capable of sustaining axial and radial loads, Slewing / Cross-Roller Bearing.
| ID | Tolerance | OD | Tolerance | Bearing Height | Tolerance | Height 1 | General Tolerance | Tight Tolerance | Height 2 | Tight Tolerance | OD inner ring | Height outer ring | Shoulder inner ring | Shoulder outer ring | |
| d(mm) | d(mm) | D(mm) | D(mm) | H(mm) | H(mm) | H1(mm) | H1(mm) | H1(mm) | H2(mm) | H2(mm) | D1(mm) | C(mm) | ds(mm) | Dh(mm) | |
| YRT650 | 650 | 0/-0.038 | 870 | 0/-0.05 | 122 | ±0.5 | 78 | ±0.25 | ±0.1 | 44 | ±0.03 | 800 | 34 | 798 | 802 |
| Mounting holes inner ring | Connection screw | Positional relationship | Mounting holes outer ring | Lifting hole | Positional relationship | Fixing screw | Tightening torque | Axial loading | |||
| PCD1(mm) | n1-Ø | n2-M | n1+n2 | PCD2(mm) | n3-Ø | n4-M | n3+n4 | M | M0(Nm) | Coa(KN) | Ca(KN) |
| 680 | 46-Ø14 x Ø 20↓13 | 2-M12 | 48*7.5° | 830 | 42-Ø14 | 6-M12 | 48*7.5° | M12 | 116 | 6800 | 960 |
| Radial loading | Friction torque | Limit speed | Runout P4 | Runout P2 | Weight | |
| Cor(KN) | Cr(KN) | M(Nm) | nG(rpm) | Kia, Sia, Kea, Sea(mm) | Kia, Sia, Kea, Sea(mm) | m(Kg) |
| 1300 | 455 | 200 | 55 | 0.01 | 0.005 | 170 |
