NB

TRF40GUUE NB 40mm Slide Bush Bushings Motion Linear Bearing

TRF40GUUE NB 40mm Slide Bush Bushings Motion Linear Bearing

$958.99 USD
$1,467.00 USD $958.99 USD
Aanbieding Uitverkocht

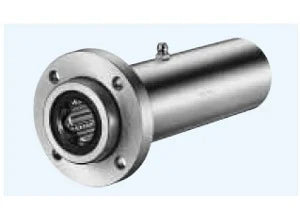

TRF40GUUE NB Triple Wide Round Flange
Pilot End Slide Bush
Made in Japan:NB Linear Systems

TRF40GUUE NB Triple Wide Round Flange Pilot End Type Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • TRF40GUUE NB Bearing
  • Linear Slide Bush
  • Bearing Inner Diameter: 40mm
  • Retainer Material: resin
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 2650 N
  • Static Load Rating Cor: 6270 N

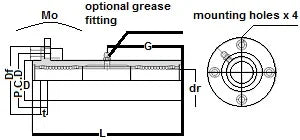

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
40 0-12 65 0-30 230 101 13 83 9 x 14 x 8.1


Alle details bekijken
