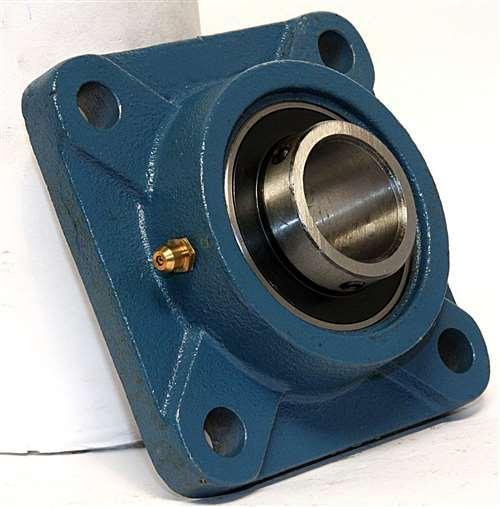

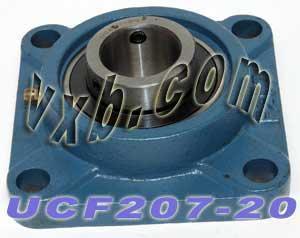

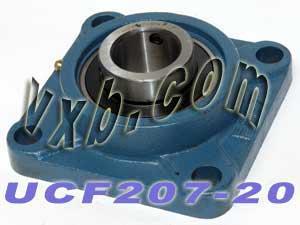

1-1/4" UCF207-20 Flanged Mounted Bearing Unit - Square 4-Bolt Housing

1-1/4" UCF207-20 Flanged Mounted Bearing Unit
✔️ Square 4-Bolt Housing – Set Screw Lock – For 1-1/4" Shaft

The UCF207-20 is a complete 4-bolt square flange mounted bearing unit designed for reliable shaft support in industrial machinery, conveyors, agricultural equipment, and more. With a set screw locking collar and heavy-duty housing, this bearing is built for stability and easy mounting.

✅ Shaft Diameter: 1-1/4" inch
✅ Type: Set screw locking (UC207-20 insert)
✅ Housing: 4-bolt square flange (F207)
✅ Bolt Hole Size: 3/8" inch
✅ Basic dynamic load (Cr): 25.7 kN
✅ Basic static load (Cor): 15.4 kN
✅ Quantity: 1 complete unit

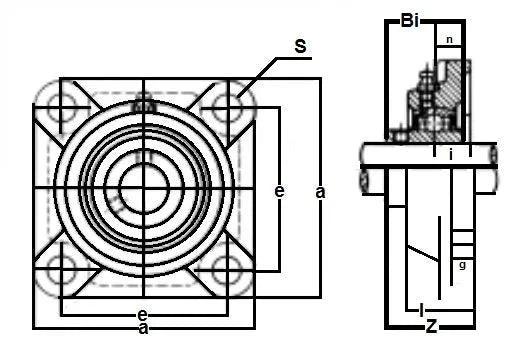

Mounting Dimensions (inches):

💡 Why choose a 4-bolt flange bearing with set screw lock?
It provides solid shaft retention and simple installation, making it a favorite for rotating equipment and machinery that requires frequent maintenance or reliable support under heavy load.

Trust the UCF207-20 to keep your equipment turning strong - it's a rock-solid fit for serious industrial performance!
