24" Linear Motion CNC Router Module – Heavy Duty Ballscrew – 20mm Lead

Heavy Duty CNC Linear Motion Module
✔️ 24-Inch Stroke with 20mm Ballscrew Lead

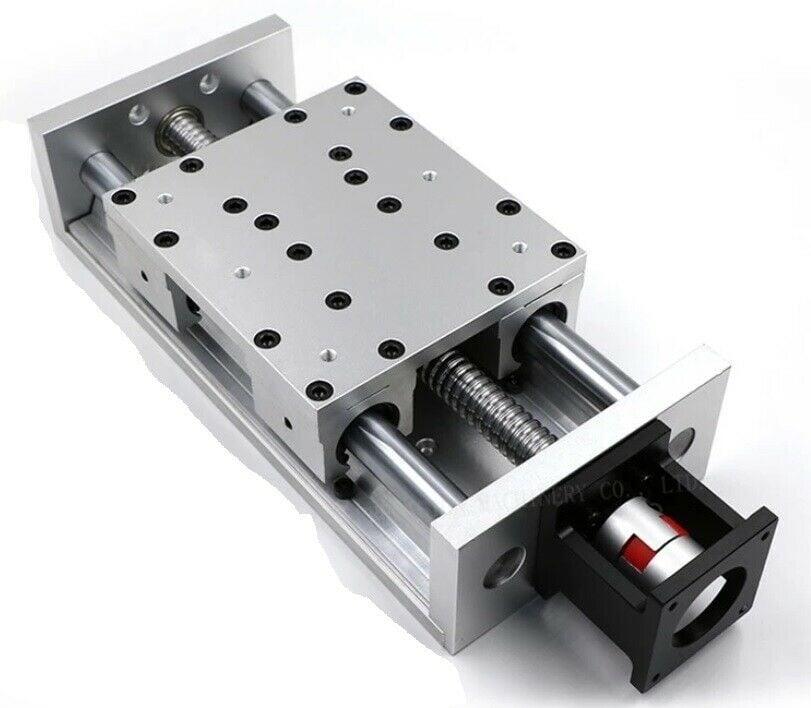

Engineered for speed, this 24-inch CNC linear motion module uses a 2020 ballscrew with a 20mm lead - perfect for rapid movement in high-efficiency CNC routers, robotics, and automation systems. With SBR20 linear rails and dual shaft support, it handles fast motion without compromising stability or precision.

✅ Travel Stroke: 24 inches (approx. 610mm)
✅ Ballscrew Type: 2020 (20mm lead)
✅ Linear Guideways: SBR20 for heavy-duty support
✅ Compatible Motors: 57/86 stepper motors and 100W–400W servo motors
✅ Structural Design: Dual shaft for improved rigidity
✅ Accuracy Grade: C7
✅ Maximum Speed: 1,000mm/sec
✅ Pack Size: 1 CNC linear module

Dimensions Table:

💡 What is the benefit of using a 20mm lead ballscrew in CNC automation?
A 20mm lead delivers ultra-fast linear travel, making it ideal for CNC and robotic systems that require quick movements with reduced cycle times. It’s especially useful when rapid positioning is more important than high torque.
