Nachi

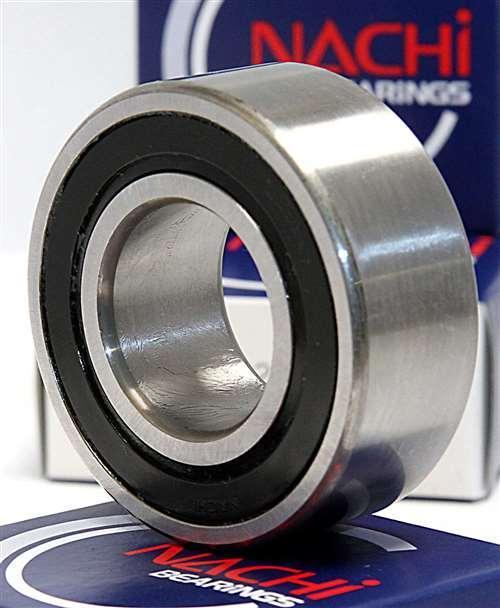

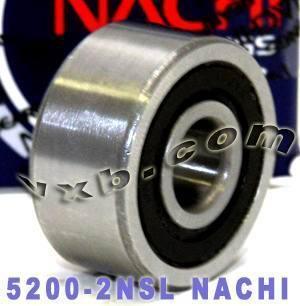

5200-2NSL Nachi Angular Contact Bearing - Double Row - 10x30x14.3 Bearing

5200-2NSL Nachi Angular Contact Bearing - Double Row - 10x30x14.3 Bearing

Regular price $58.71 USD
Regular price $61.80 USD Sale price $58.71 USD
Sale Sold out
5200-2NSL Nachi Angular Ball Bearing
Double Sealed
10mm x 30mm x 14.3mm
Made in Japan


5200-2NSL Nachi Double Row Angular Ball Bearing, bearing is Double Sealed, Made in Japan, inner diameter is 10mm, outer diameter is 30mm and width is 14.3mm.

  • 5200-2NSL Nachi Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Double Sealed
  • Dimensions: 10mm x 30mm x 14.3mm/Metric
  • Bearing Inner Diameter: 10mm
  • Bearing Outer Diameter: 30mm
  • Bearing Width: 14.3mm
  • Size: 10 x 30mm x 14.3mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 7,300 N
  • Static load rating Cor: 4,000 N
  • Limiting Speed:
    • Grease Lubrication: 18,000 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
