5215 Nachi Angular Contact Bearing - Double Row - Japan 75x130x41.3 Bearing

5215 Nachi Angular Contact Bearing - Double Row - Japan 75x130x41.3 Bearing

$315.00 USD
$840.00 USD $315.00 USD
Sale Sold out

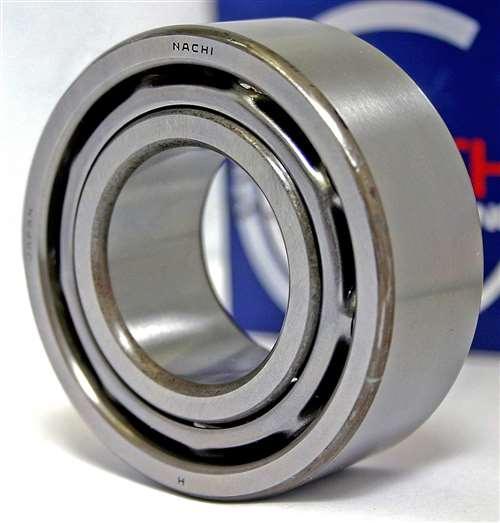

5215 Nachi Double Row Angular Ball Bearing
75mm x 130mm x 41.3mm
Made in Japan

5215 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 75mm, outer diameter is 130mm and width is 41.3mm.

  • 5215 Nachi Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 75mm x 130mm x 41.3mm/Metric
  • ID (inner diameter)/Bore: 75mm
  • OD (outer diameter D1): 130mm
  • Width: 41.3mm
  • Size: 75 x 130 x 41.3 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 96,000 N
  • Static load rating Cor: 85,500 N
  • Limiting Speed:
    • Grease Lubrication: 3,400 RPM
    • Oil Lubrication: 4,700 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
