5308ZZ Nachi Angular Contact Bearing - Double Row - 40x90x36.5 Bearing

5308ZZ Nachi Angular Contact Bearing - Double Row - 40x90x36.5 Bearing

$118.49 USD
$124.73 USD $118.49 USD
Sale Sold out

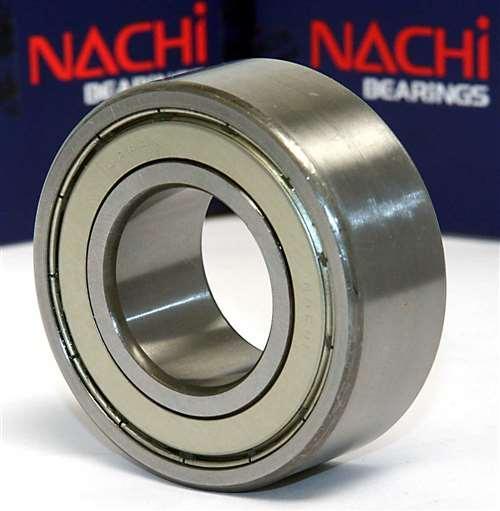

5308ZZ Nachi Double Row Angular Ball Bearing
Double Shielded
40mm x 90mm x 36.5mm
Made in Japan

5308ZZ Nachi Double Row Angular Ball Bearing, bearing is Double Shielded, Made in Japan, inner diameter is 40mm, outer diameter is 90mm and width is 36.5mm.

  • 5308ZZ Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Double Shielded
  • Dimensions: 40mm x 90mm x 36.5mm/Metric
  • ID (inner diameter)/Bore: 40mm
  • OD (outer diameter): 90mm
  • Size: 40 x 90 x 36.5 mm
  • Width: 36.5mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 63,500 N
  • Static load rating Cor: 46,500 N
  • Limiting Speed:
    • Grease Lubrication: 5,500 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
