6002ZZENR Nachi Bearing 15x32x9 Shielded C3 Snap Ring Japan Made

6002ZZENR Nachi Bearing 15x32x9 Shielded C3 Snap Ring Japan Made

$19.99 USD
$33.00 USD $19.99 USD
Sale Sold out

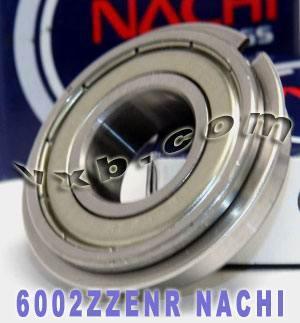

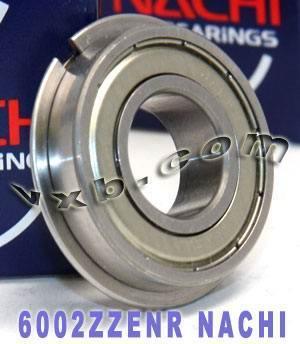

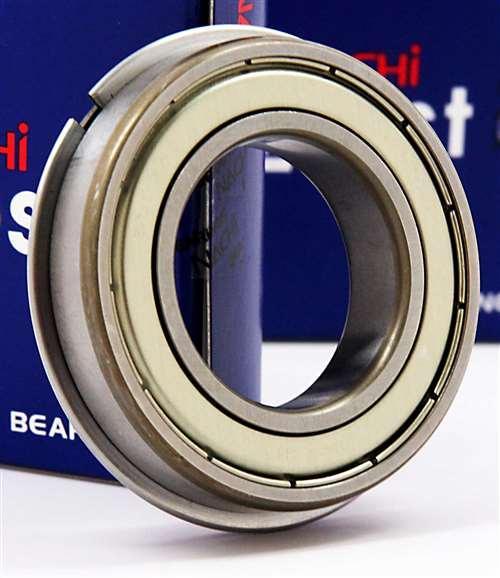

6002ZZENR Nachi Bearing
With Snap Ring (C clip)
15mm x 32mm x 9mm
Made in Japan

6002ZZENR Nachi Bearing, Made in Japan, with a Snap Ring, inner diameter is 15mm, outer diameter is 32mm and width is 9mm.

  • 6002ZZENR Nachi Ball Bearing
  • Nachi Deep groove Ball Bearings
  • Clearance: C3 (increased internal clearance for higher speed or thermal expansion)
  • Closures: Double metal shields (ZZ) for added protection ZNR/ZZNR/2ZNR
  • Dimensions: 15mm x 32mm x 9mm/Metric
  • ID (inner diameter)/Bore: 15mm
  • OD (outer diameter D1): 32mm
  • Width: 9mm
  • Size: 15mm x 32mm x 9mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 5,600 N
  • Static load rating Cor: 2,840 N
  • Limiting Speed:
    • Grease Lubrication: 24,000 RPM
  • Made in Japan
  • Equal: 6002 ZZ / 6002 2Z

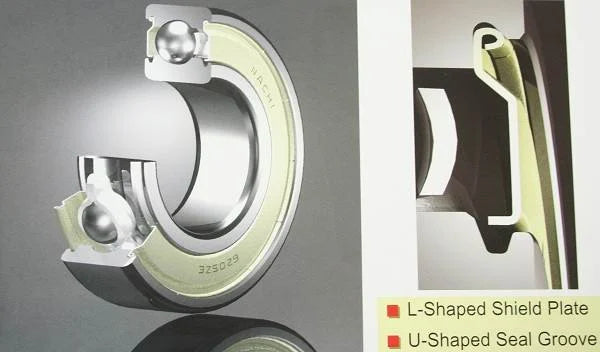

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
