Nachi

6013ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 65x100x18 Bearing

6013ZZENR Nachi Bearing Shielded C3 Snap Ring Japan 65x100x18 Bearing

$81.46 USD
$85.75 USD $81.46 USD
Sale Sold out

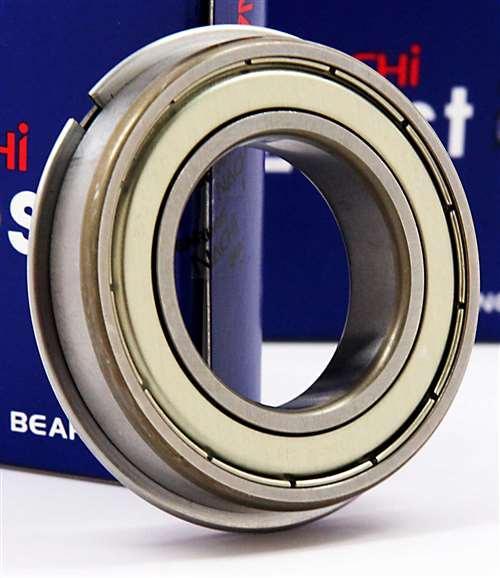

6013ZZENR Nachi Bearing
With Snap Ring (C clip)
Made in Japan

6013ZZENR Nachi Bearing, Made in Japan, with a Snap Ring, here are the dimensions of the 6013ZZENR, the 6013ZZENR inner diameter is 65mm, the 6013ZZENR outer diameter is 100mm, 6013ZZENR width is 18mm.

  • 6013ZZENR Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (ZZ) for added protection ZNR/ZZNR/2ZNR
  • Clearance: C3 (increased internal clearance for higher speed or thermal expansion)
  • Dimensions: 65mm x 100mm x 18mm/Metric
  • ID (inner diameter)/Bore: 65mm
  • OD (outer diameter): 100mm
  • Width: 18mm
  • Size: 65 x 100 x 18 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 30,500 N
  • Static load rating Cor: 25,200 N
  • Limiting Speed:
    • Grease Lubrication: 6,700 RPM
  • Equal: 6013 ZZ / 6013 2Z
  • Made in Japan

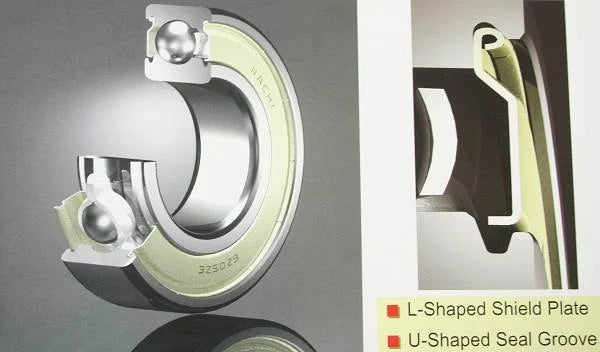

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
