Nachi

6024ZZE Nachi Bearing Shielded C3 Japan 120x180x28 Large

6024ZZE Nachi Bearing Shielded C3 Japan 120x180x28 Large

$180.39 USD
$189.88 USD $180.39 USD
Sale Sold out

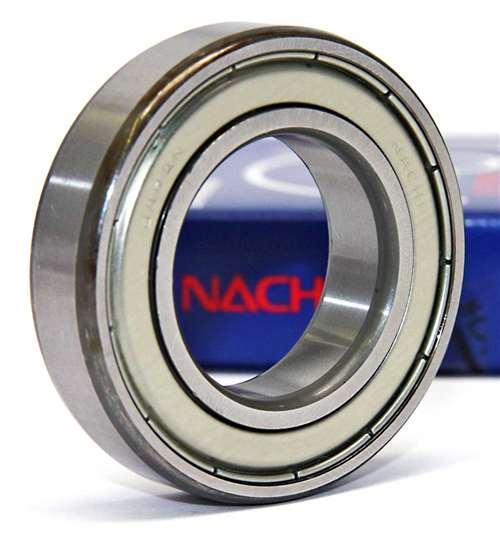

6024ZZE Nachi Bearing
One Bearing
Made in Japan

6024ZZE Nachi Bearing, the 6024ZZE inner diameter is 120mm, the 6024ZZE outer diameter is 180mm, 6024ZZE width is 28mm.

  • 6024ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 120mm x 180mm x 28mm/Metric
  • ID (inner diameter)/Bore: 120mm
  • OD (outer diameter): 180mm
  • Width: 28mm
  • Size: 120 x 180 x 28 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 88000 N
  • Static load rating Cor: 79500 N
  • Limiting Speed:
    • Grease Lubrication: 3600 RPM
    • Oil Lubrication: 4300 RPM
  • Equal: 6024 ZZ / 6024 2Z
  • Made in Japan

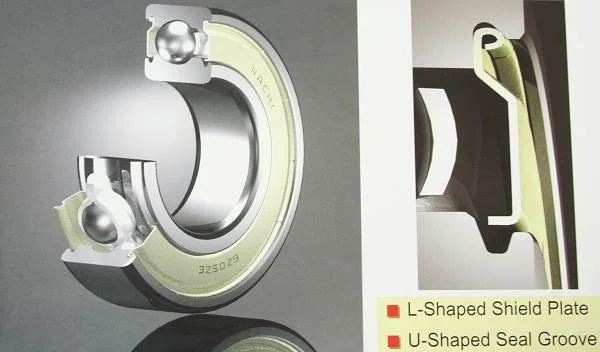

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
