7010CYP4 Nachi Angular Contact Bearing 50x80x16 ABEC-7 Japan Made

7010CYP4 Nachi Angular Contact Bearing 50x80x16 ABEC-7 Japan Made

Regular price $387.00 USD
Regular price $1,029.00 USD Sale price $387.00 USD
Sale Sold out
High Precision Ball Bearing
7010CYP4 Nachi Angular Ball Bearing
15 degrees Contact Angle
Abec-7
50mm x 80mm x 16mm
Made in Japan


7010CYP4 Nachi high precision Angular Ball Bearing with 15 degrees contact angle and Polyamide resin cage, bearing is ABEC-7 (P4) quality and made in Japan.

  • 7010CYP4 Nachi Ball Bearing
  • Nachi Angular Ball Bearing
  • Cage: Polyamide resin cage
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 50mm x 80mm x 16mm/Metric
  • ID (inner diameter)/Bore: 50mm
  • OD (outer diameter): 80mm
  • Width: 16mm
  • Size: 50 x 80 x 16 mm
  • Dynamic load rating Cr: 26,200 N
  • Static load rating Cor: 22,000 N
  • Limiting Speed:
    • Grease Lubrication: 12,000 RPM
    • Oil Lubrication: 17,000 RPM
  • Made in Japan
  • Quantity: 1 Bearing

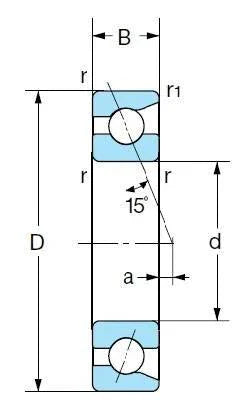

Dimensions
d D B r r1 a
50mm 80mm 16mm 1mm 0.6mm -0.5mm

Kit10835

๐Ÿ’ก What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineersโ€™ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
