7200CYDUP4 Nachi Angular Contact Bearing 10x30x9 ABEC-7 Japan Made

7200CYDUP4 Nachi Angular Contact Bearing 10x30x9 ABEC-7 Japan Made

Regular price $405.00 USD
Regular price $1,077.00 USD Sale price $405.00 USD
Sale Sold out
High Precision Ball Bearings
7200CYDUP4 Nachi Angular Ball Bearings
15 degrees Contact Angle
Abec-7
10mm x 30mm x 9mm
Made in Japan

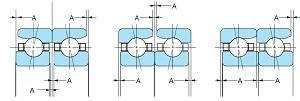

7200CYDUP4 Nachi high precision Angular pair of Ball Bearings with 15 degrees contact angle and Polyamide resin cage, pair of ball bearings is 2 duplex bearings, bearings are ABEC-7 (P4) quality and made in Japan.

  • 7200CYDUP4 Nachi Ball Bearings
  • Nachi Angular Ball Bearings
  • Cage: Polyamide resin cage
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 10mm x 30mm x 9mm/Metric
  • ID (inner diameter)/Bore: 10mm
  • OD (outer diameter): 30mm
  • Width: 9mm
  • Quantity: Pair of Bearings
  • Dynamic load rating Cr: 11,300 N
  • Static load rating Cor: 6,650 N
  • Limiting Speed:
    • Grease Lubrication: 32,000 RPM
    • Oil Lubrication: 44,000 RPM
  • Made in Japan

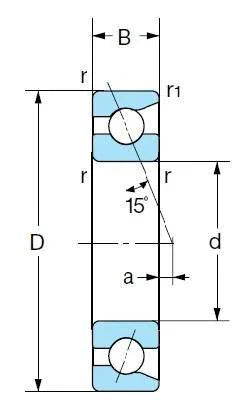

Dimensions
d D B r r1 a
10mm 30mm 9mm 0.6mm 0.3mm -2.2mm


๐Ÿ’ก What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineersโ€™ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
