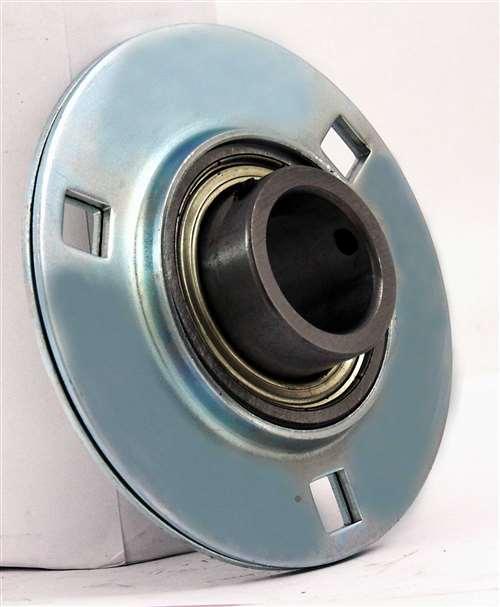

FYH SBPF205-16 1" inch Stamped round 3-Bolt Flanged Mounted Bearing

SBPF205-16 Flange Bearing – 1" Shaft Diameter
✔️ Round 3-Bolt Flange – Stamped Steel Plate – Set Screw Locking

The SBPF205-16 is a light-duty stamped steel flange bearing unit with a round 3-bolt design, ideal for compact or budget-conscious installations. Featuring a 1" inner diameter and cylindrical bore with set screw locking, this unit is a great fit for agricultural tools, conveyor systems, and light machinery requiring reliable shaft support.

✅ Type: 3-bolt stamped steel flange bearing unit
✅ Shaft diameter: 1"
✅ Locking method: Set screw locking
✅ Housing: Stamped steel plate
✅ Bearing insert: SB205-16
✅ Bolt size: 5/16"
✅ Quantity: 1 bearing
✅ Load ratings:
– Dynamic (Cr): 14 kN
– Static (Cor): 7.85 kN

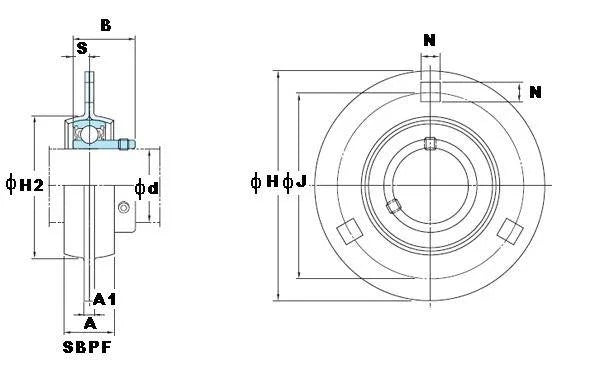

Dimensions (inches):

💡 Why choose a stamped steel flange bearing for light-duty equipment?
Stamped steel housings are lightweight, cost-effective, and easy to install - making them perfect for non-extreme applications where function and affordability matter most.

Ready for simple, secure shaft support? This 3-bolt flange bearing is an easy win. Add it to your build and keep things rolling smoothly!
