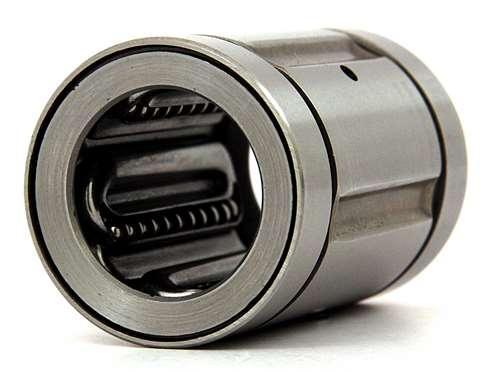

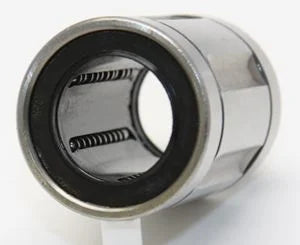

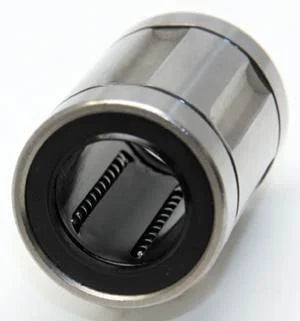

LB8UU 8mm Ball Bushing 8x15x24 Linear Motion Bearing

LB8UU 8mm Ball Bushing 8x15x24 Linear Motion Bearing

$5.65 USD
$19.99 USD $5.65 USD
Sale Sold out
Linear Ball Bushings LB8UU
Works with 8mm Shafts
8mm x 15mm x 24mm

LB8UU Linear Ball Bushing works with a 8mm Shafts, Bearing inner Diameter is 8mm, Bearing outer Diameter is 15mm and Bearing Length is 24mm.

  • LB8UU Bearing
  • Linear Ball Bushings
  • Ball circuit: 4
  • Size: 8mm x 15mm x 24mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 274 N
  • Static load rating Cor: 392 N

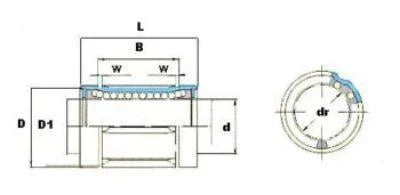

Major dimensions and tolerance (mm)
Eccentricity
Radial clearance
(mm)
d D L B W D1 Precision
(mm)		 High
(mm)
mm tolerance mm tolerance mm tolerance mm tolerance
Precision High
8 0-6 0-9 15 0-11 24 0-200 17.5 0-200 1.1 14.3 8 12 -3
