LEMS-3-6-BK-CBK 6mm Plastic Clamp Lever - Male Screw - Push Button
LEMS-3-6-BK-CBK 6mm Plastic Clamp Lever - Male Screw - Push Button
Regular price
$26.99 USD
Regular price
$41.00 USD
Sale price
$26.99 USD
Unit price
/
per
Couldn't load pickup availability
| LEMS-3-6-BK-CBK 6mm Plastic Clamp Lever - Male Screw - with Push Button |
A 6mm male screw type plastic clamp lever with push button.When the lever is pulled to adjustment position, the push button assists in transmitting the force, assisting the operation. Stainless steel threading.

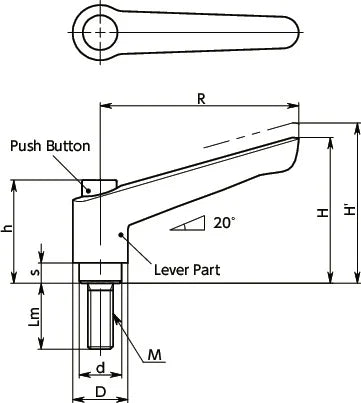

| Part Number | M | Lm | R | H | H1 | h | s | D | d | Tooth No. | Max Load (N) | Max Tightening Force (kN) |
| LEMS-3-6-BK-CBK | 3 | 6 | 45 | 35.5 | 39 | 24 | 4.2 | 13 | 10 | 18 | 9 | 0.95 |
LEMS-3-6-BK-CBK 6mm Plastic Clamp Lever - Male Screw - with Push Button LEMS-3-6-BK-CBK
