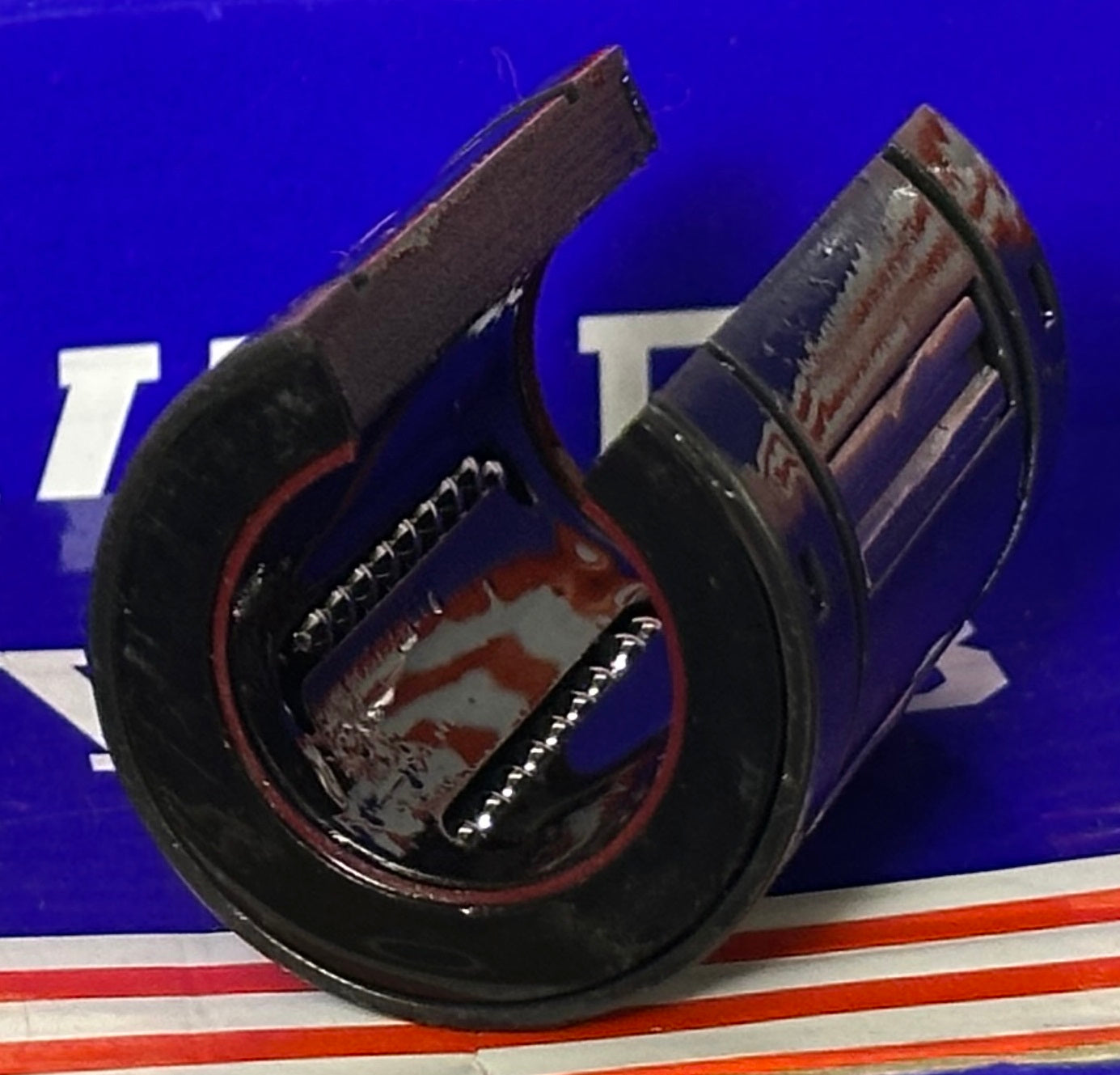

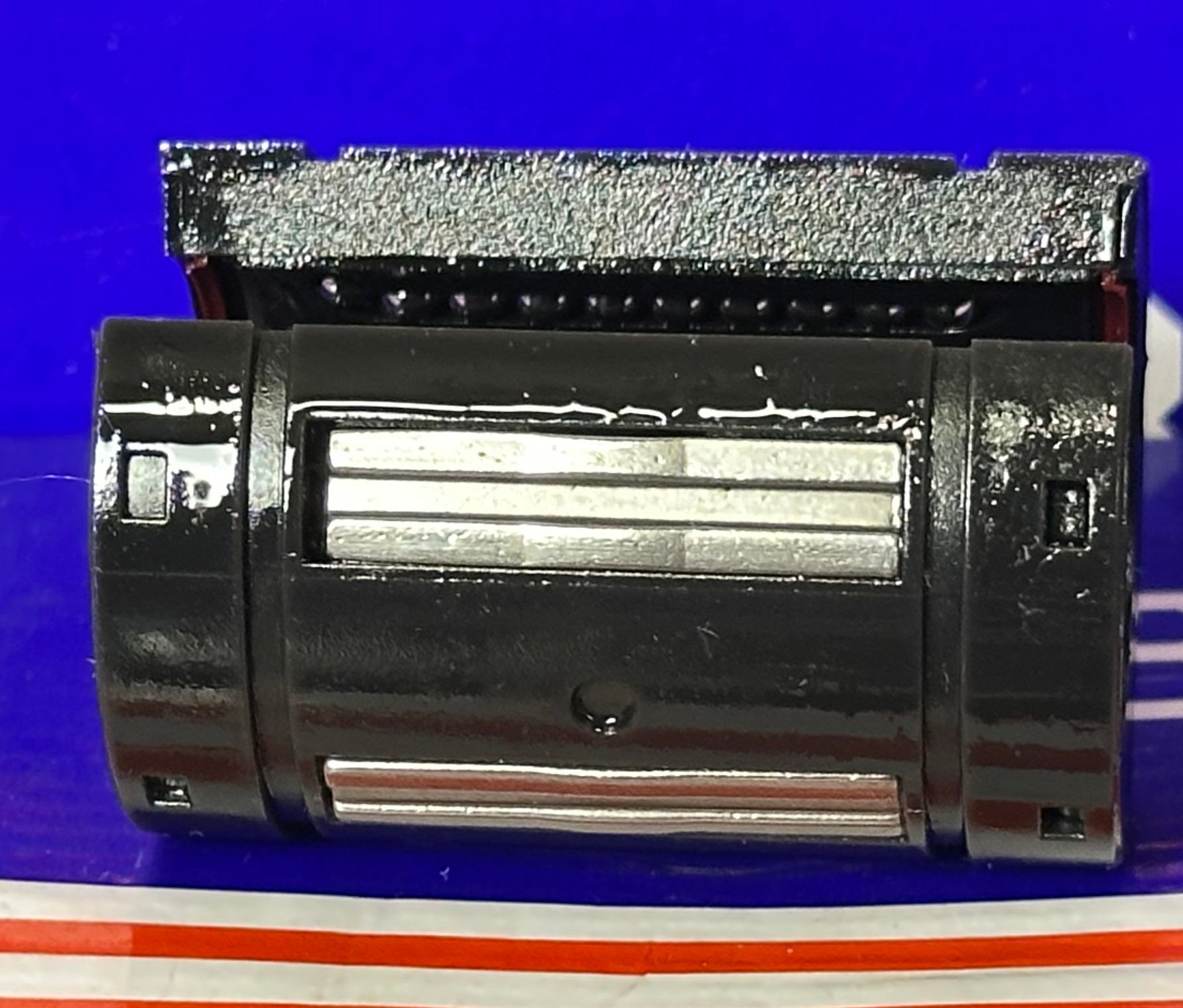

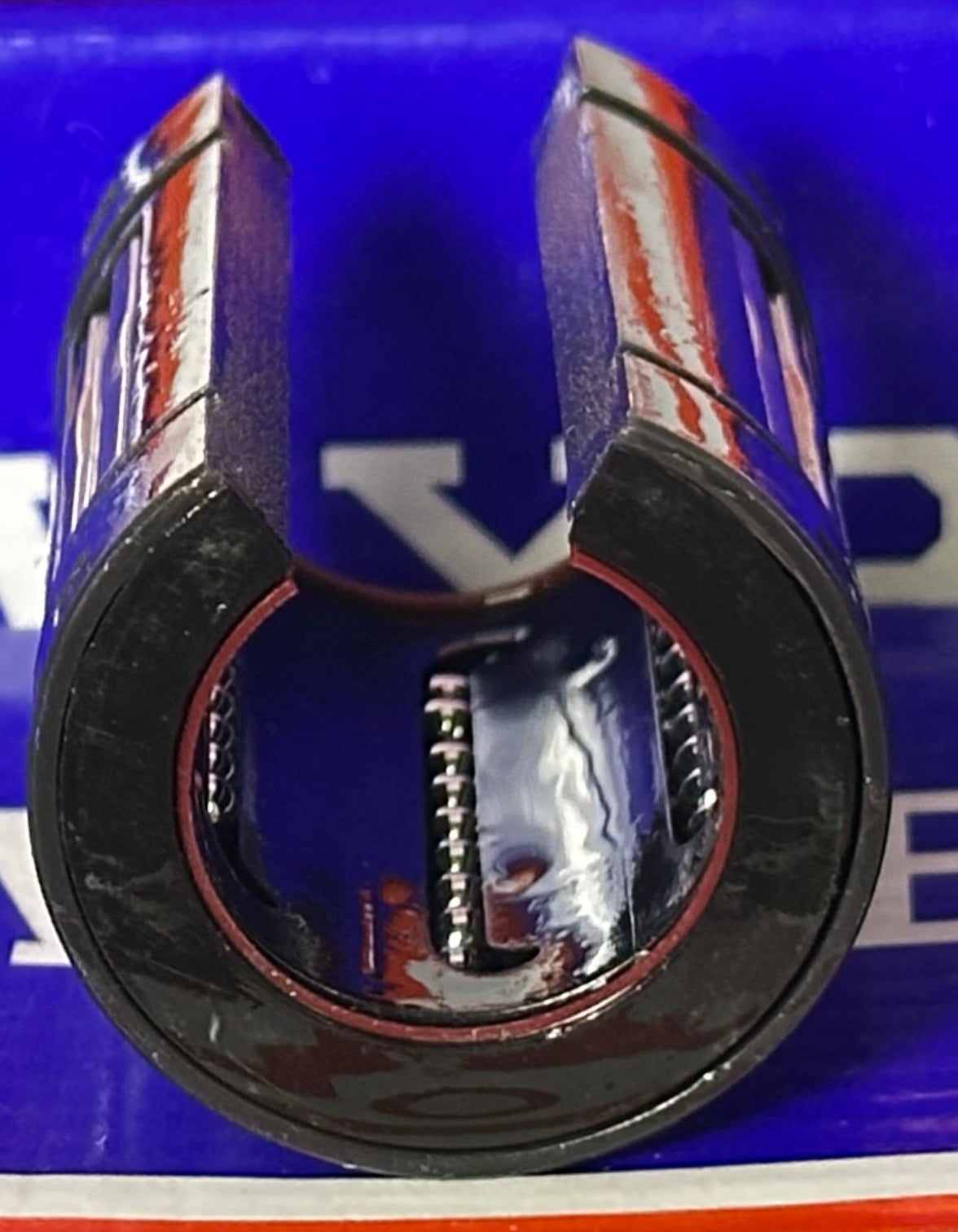

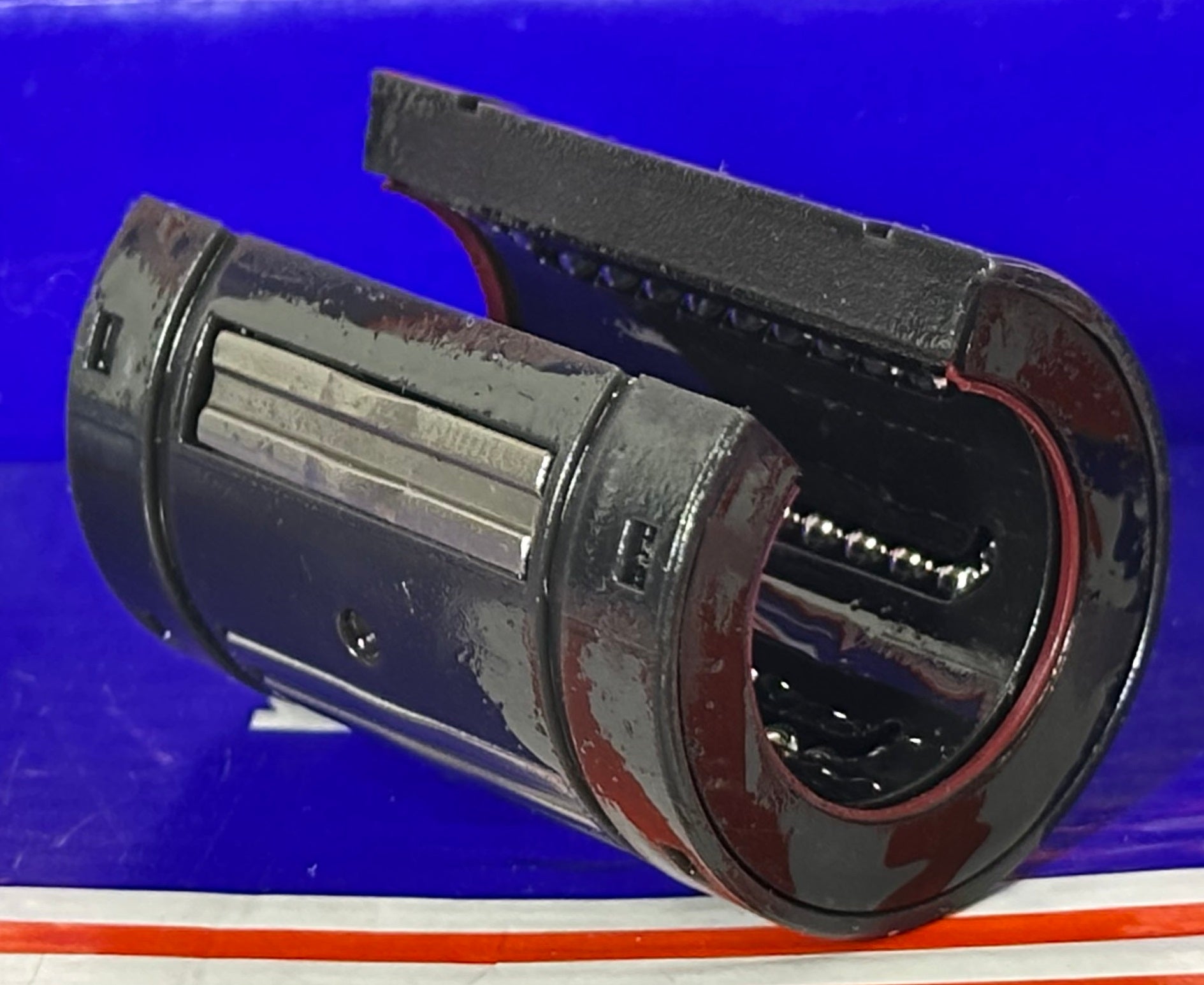

LMES20UU-OP Self Aligning Ball Bushings 20 inch Linear Motion

LMES20UU-OP 20 Bore High Load Standard type TopBall metric type linear motion ball bushings/bearings inner diameter(bore) is 20 mm dimensions with built-in seals the Top ball slide bush is a high performance bushing with three times the load capacity capable of providing up to 27 times normal travel life of a conventional slide bushing high accuracy grade linear bushings series mainly used in the USA.

• LMES20UU-OP Ball Bearing
• Linear Motion Ball Bushing
• Ball circuit: 6
• Size: 20 x 32 x 45 mm
• Bearing Inner Diameter: 20 mm
• Bearing Outer Diameter: 32 mm
• Bearing Length: 45 mm
• Dynamic Load Rating: 2090 N
• Static Load Rating: 2630 N
• Quantity: 1 Bearing
