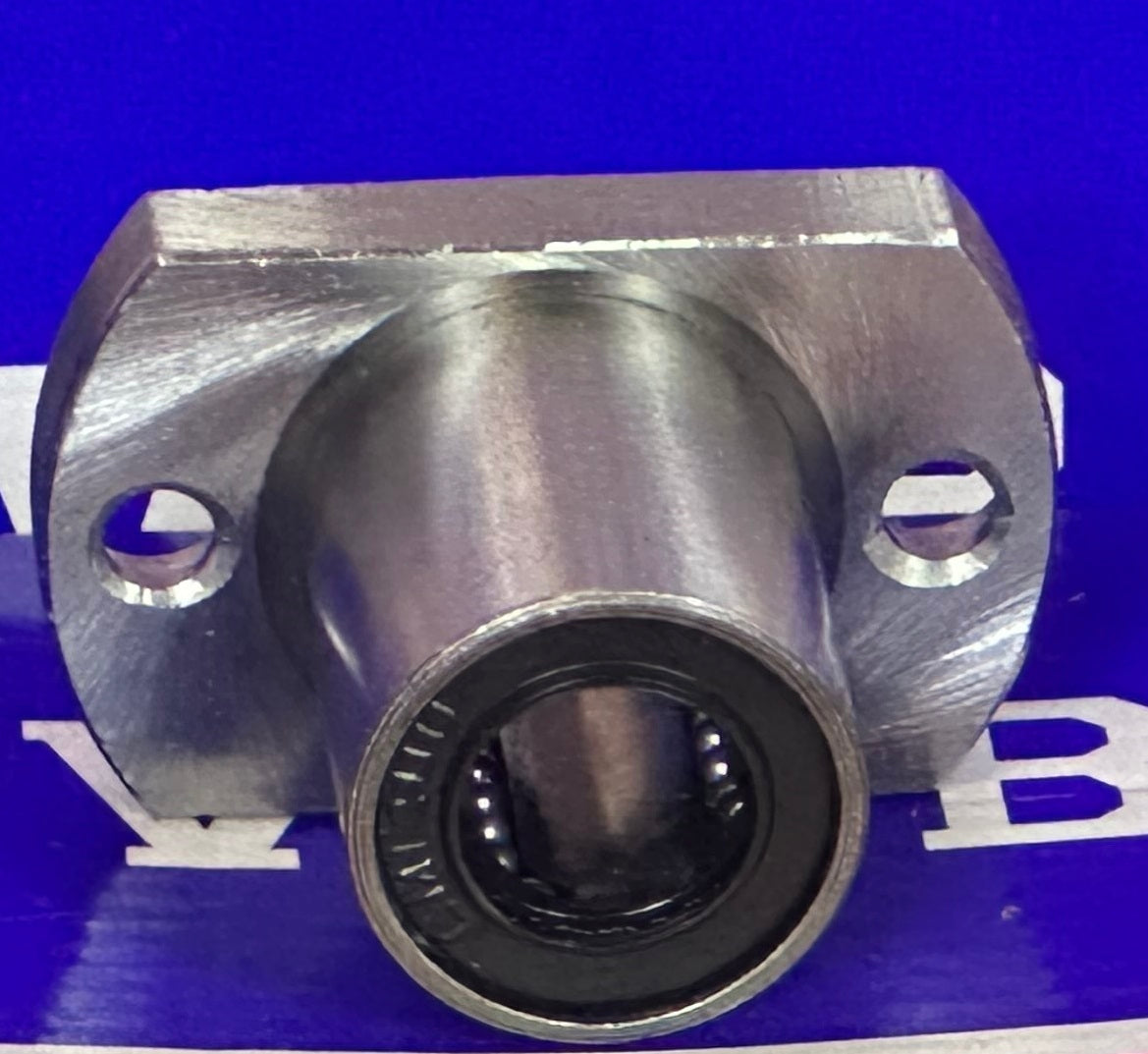

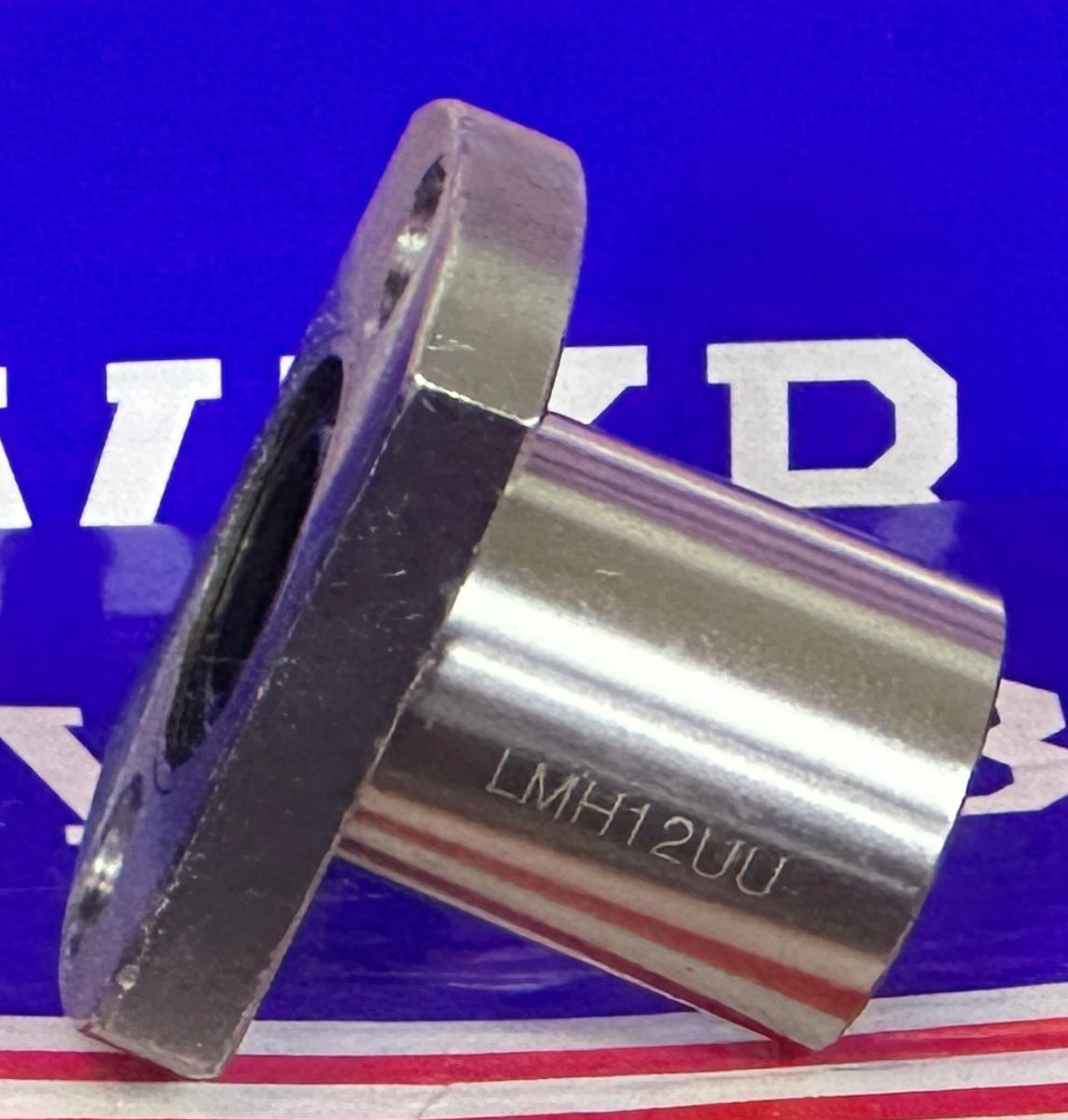

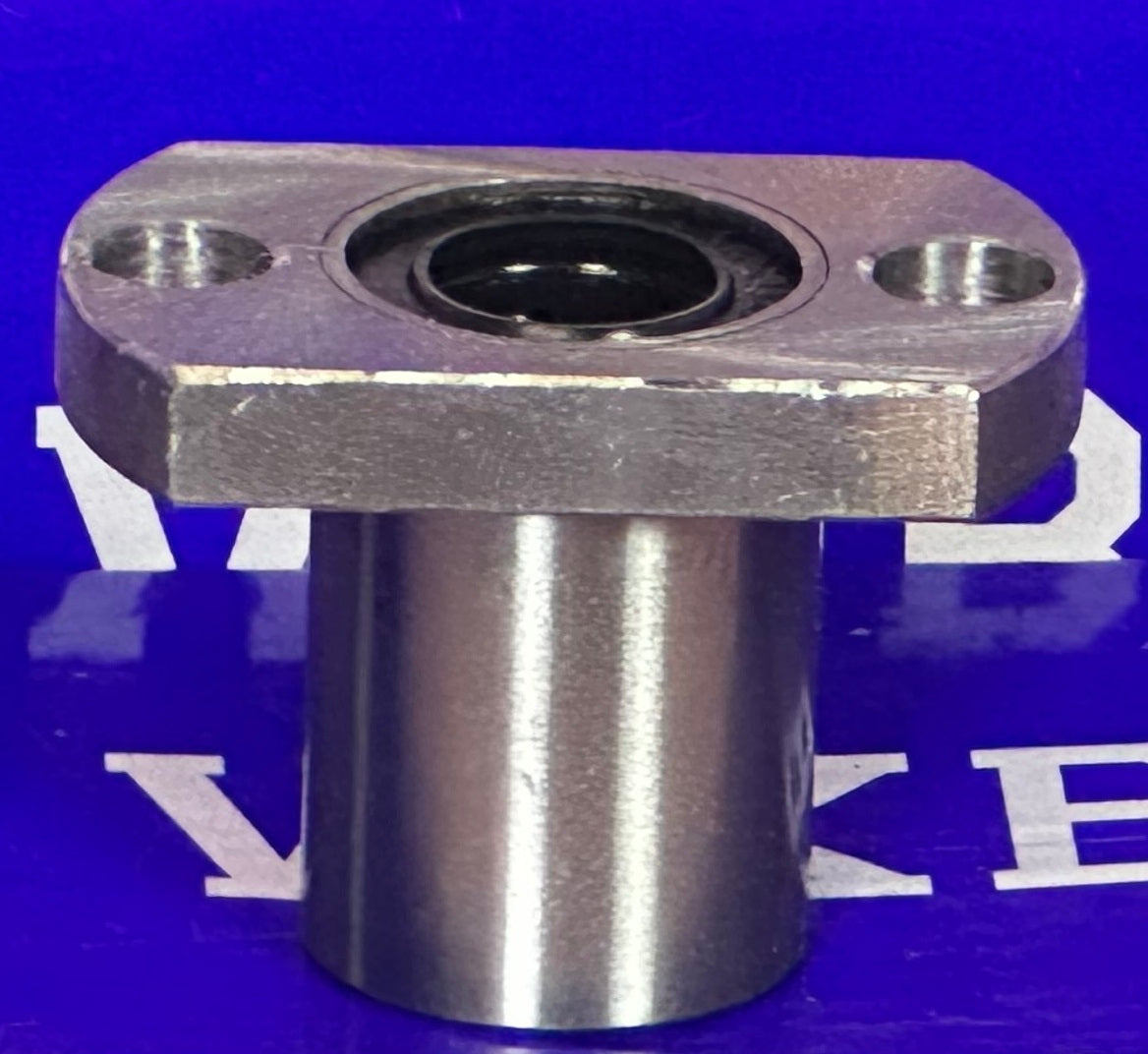

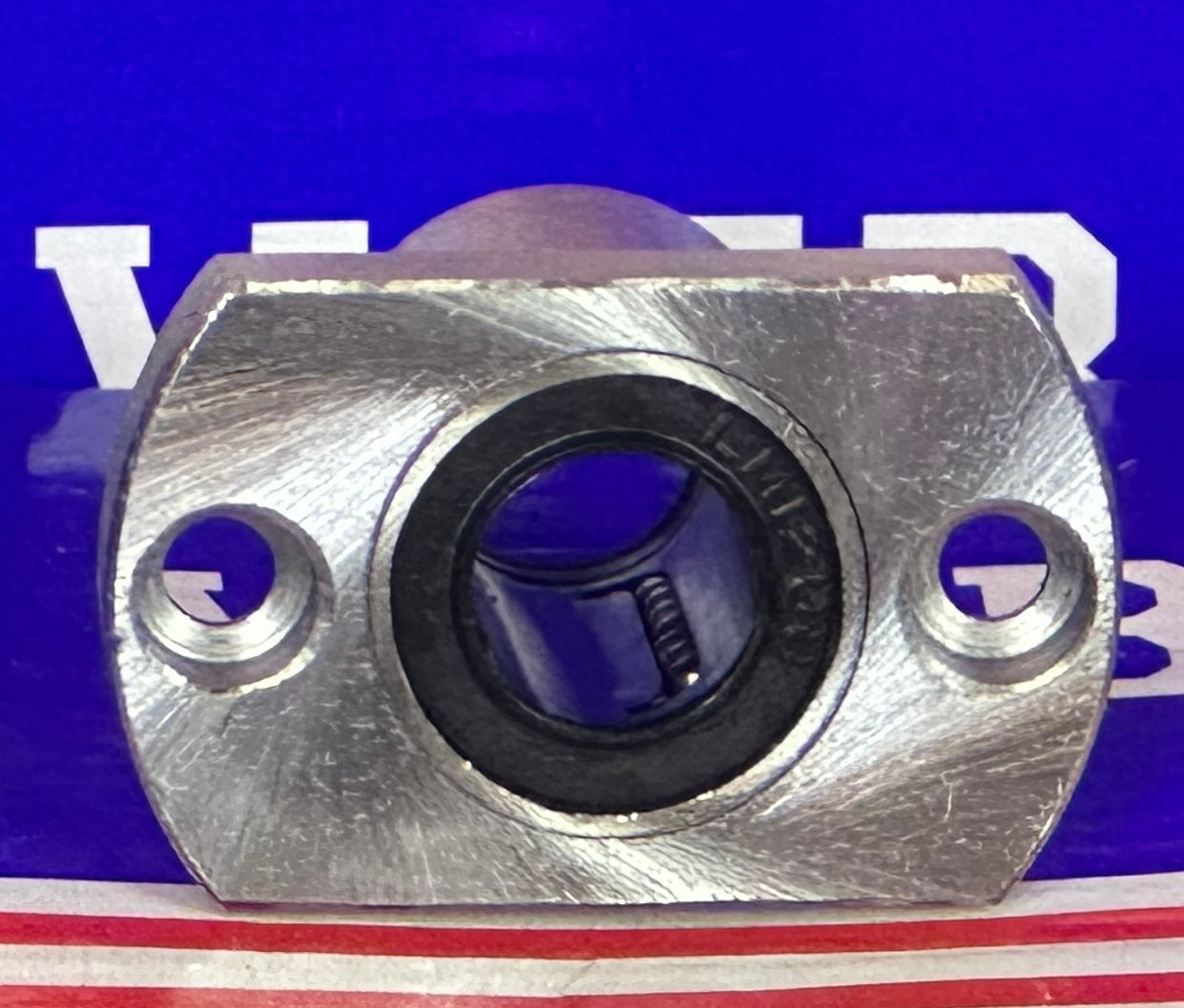

LMH12UU 12mm Flanged Ball Bushing CNC Linear Motion 12x21x30mm

LMH12UU 12mm Flanged Ball Bushing CNC Linear Motion 12x21x30mm

Regular price $9.99 USD
Regular price $19.99 USD Sale price $9.99 USD
Sale Sold out
LMH12UU Flanged Linear Motion
Ball Bushing 12x21x30

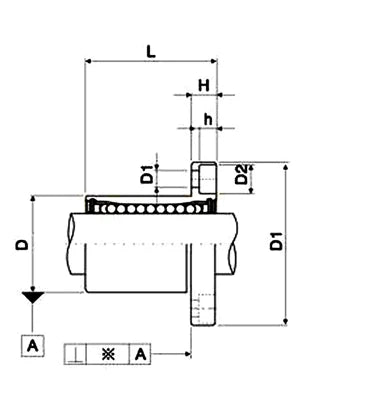

Number of Rolls dr D L D1 W H A d1 d2 h
4 12 21 30 42 27 6 32 4.5 7.5 4.1

LMH12UU Square Flanged Linear Motion Long Ball Bushing, inner diameter is 12mm, outer diameter is 21mm, and length is 30mm.
  • LMH12UU Ball Bushing
  • Flanged Linear Motion Ball Bushing
  • Inner Diameter: 12mm
  • Outer Diameter: 21mm
  • Length: 30mm
  • Dynamic load rating: 411 N
  • Static load rating: 598 N
  • Quantity: 1 Bearing
