LMH30UU 30mm Flanged Ball Bushing CNC Linear Motion 30x45x64mm

LMH30UU 30mm Flanged Ball Bushing CNC Linear Motion 30x45x64mm

Regular price $16.85 USD
Regular price $26.96 USD Sale price $16.85 USD
Sale Sold out
LMH30UU Flanged Linear Motion
Ball Bushing 30x45x64

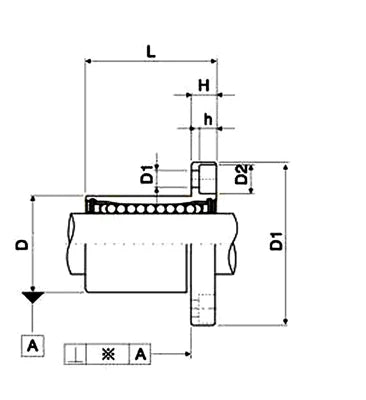

Number of Rolls dr D L D1 W H A F d1 d2 h
6 30 45 64 74 51 10 49 35 6.6 11 6.1

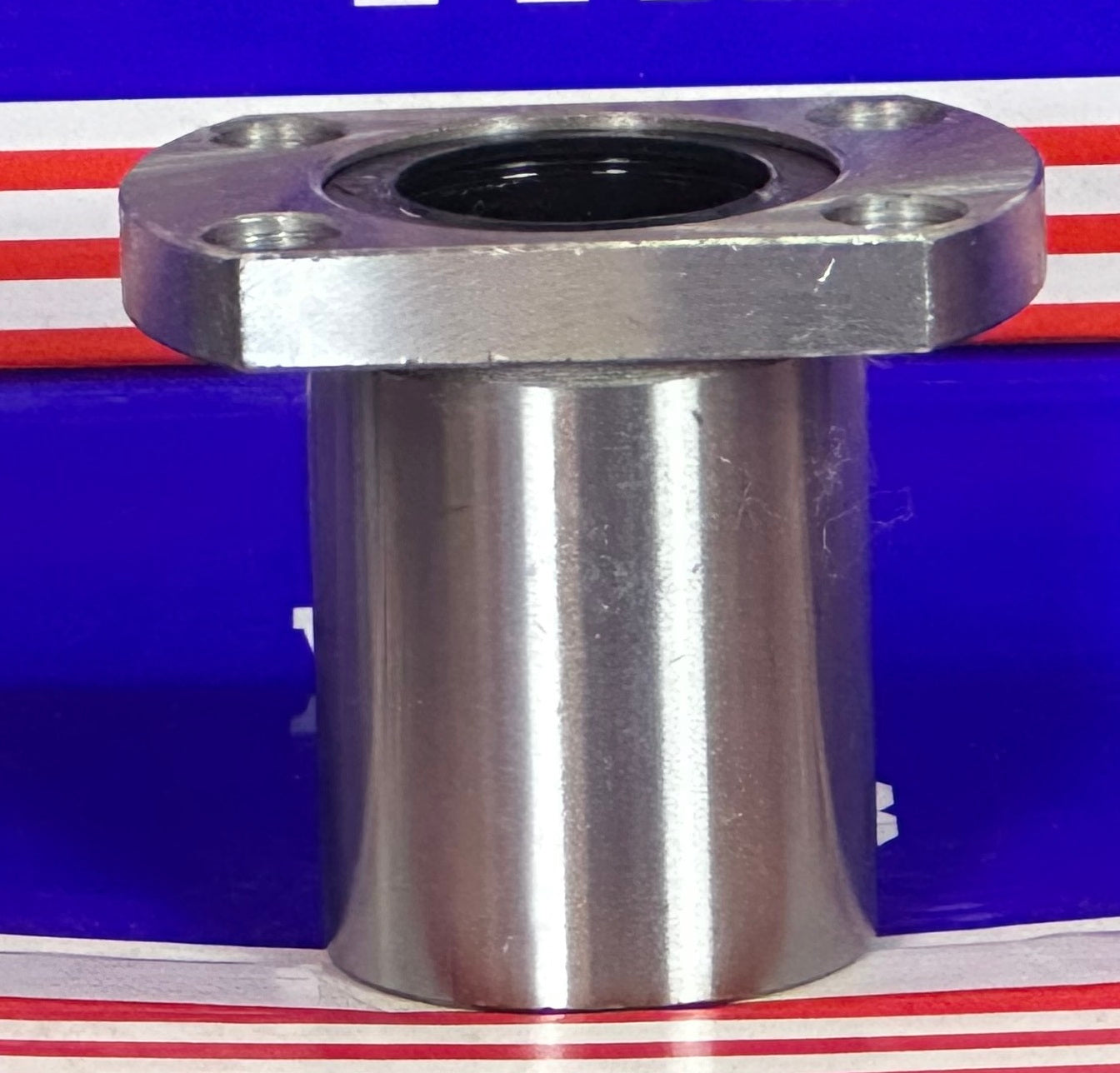

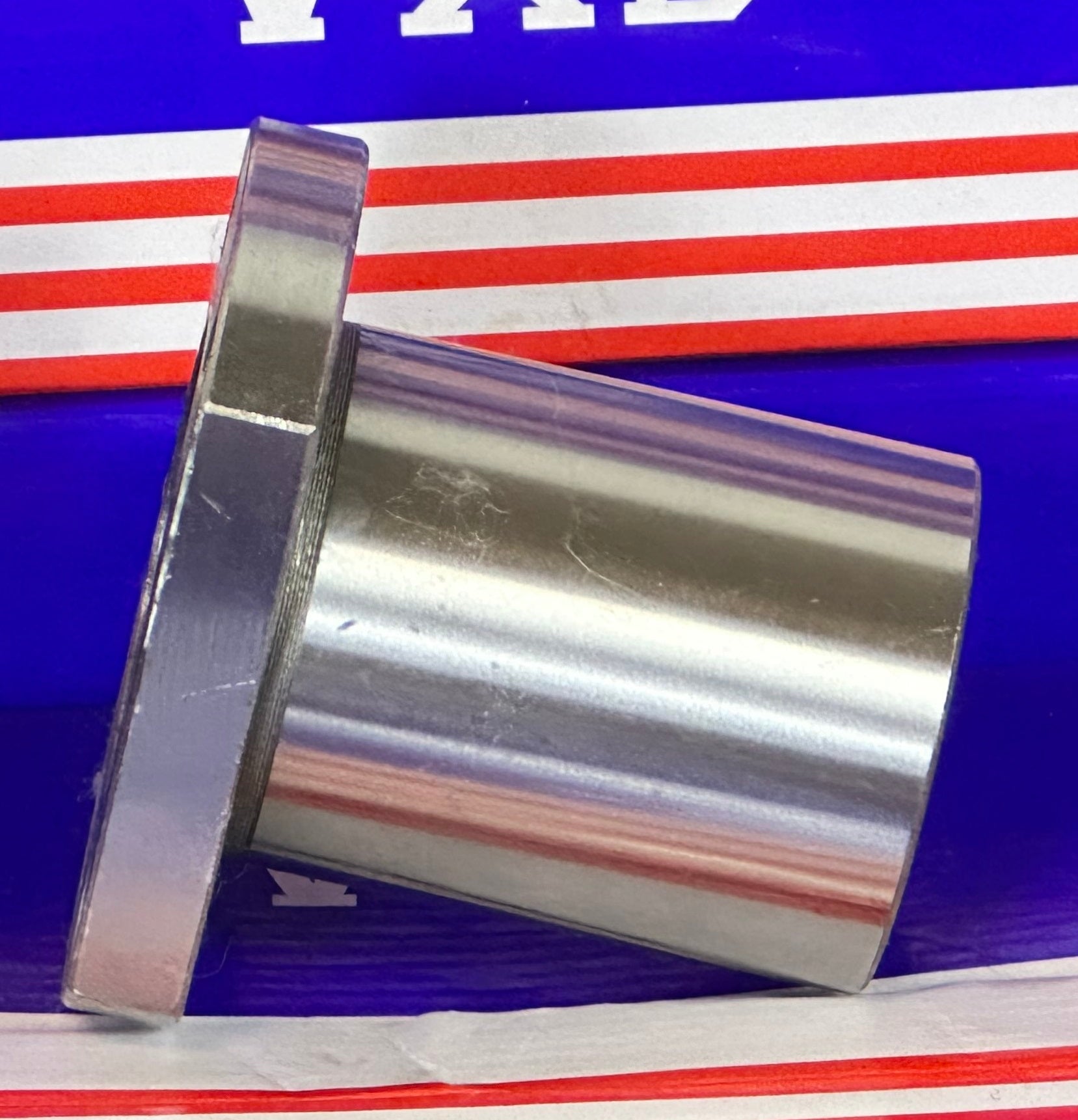

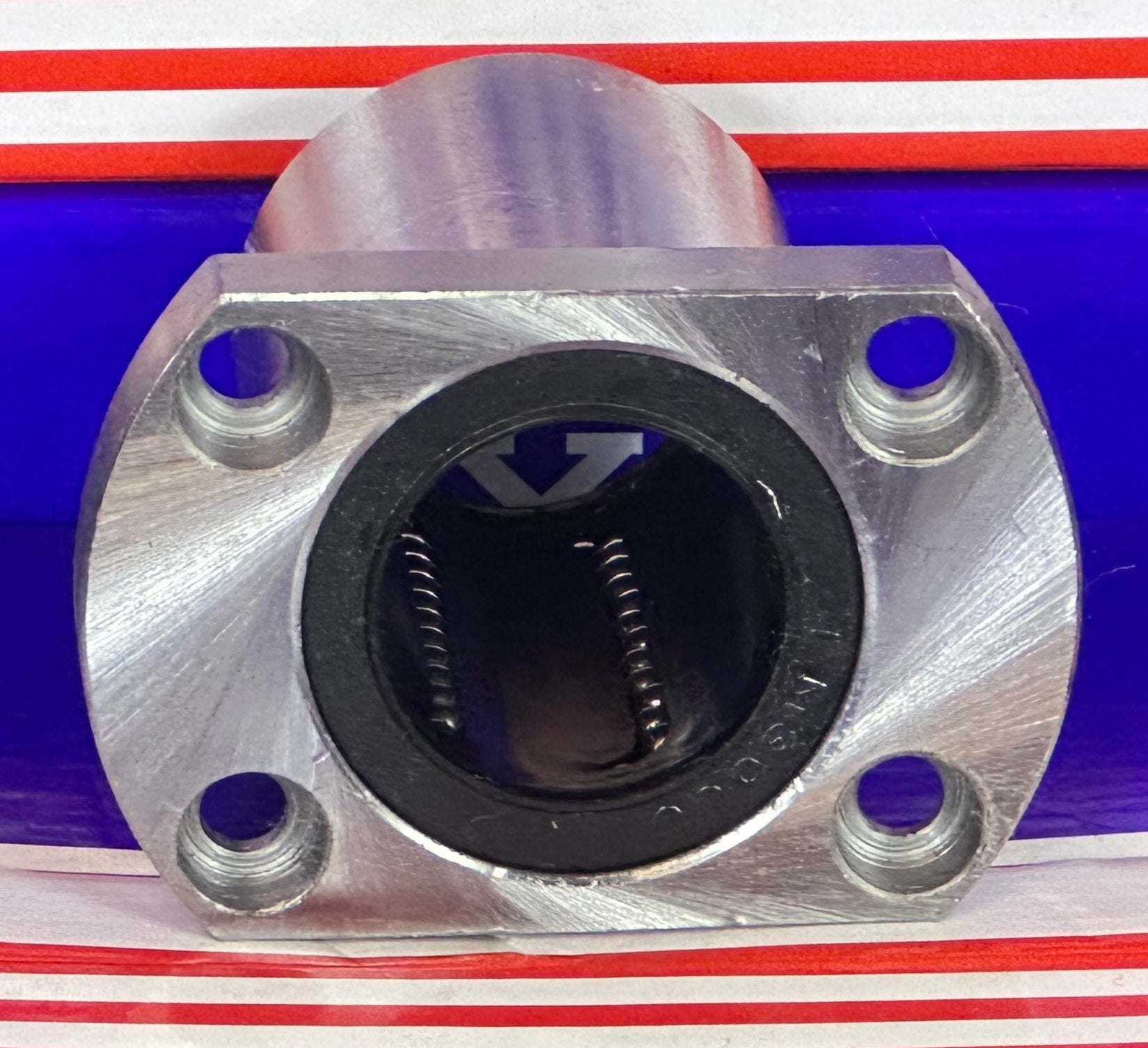

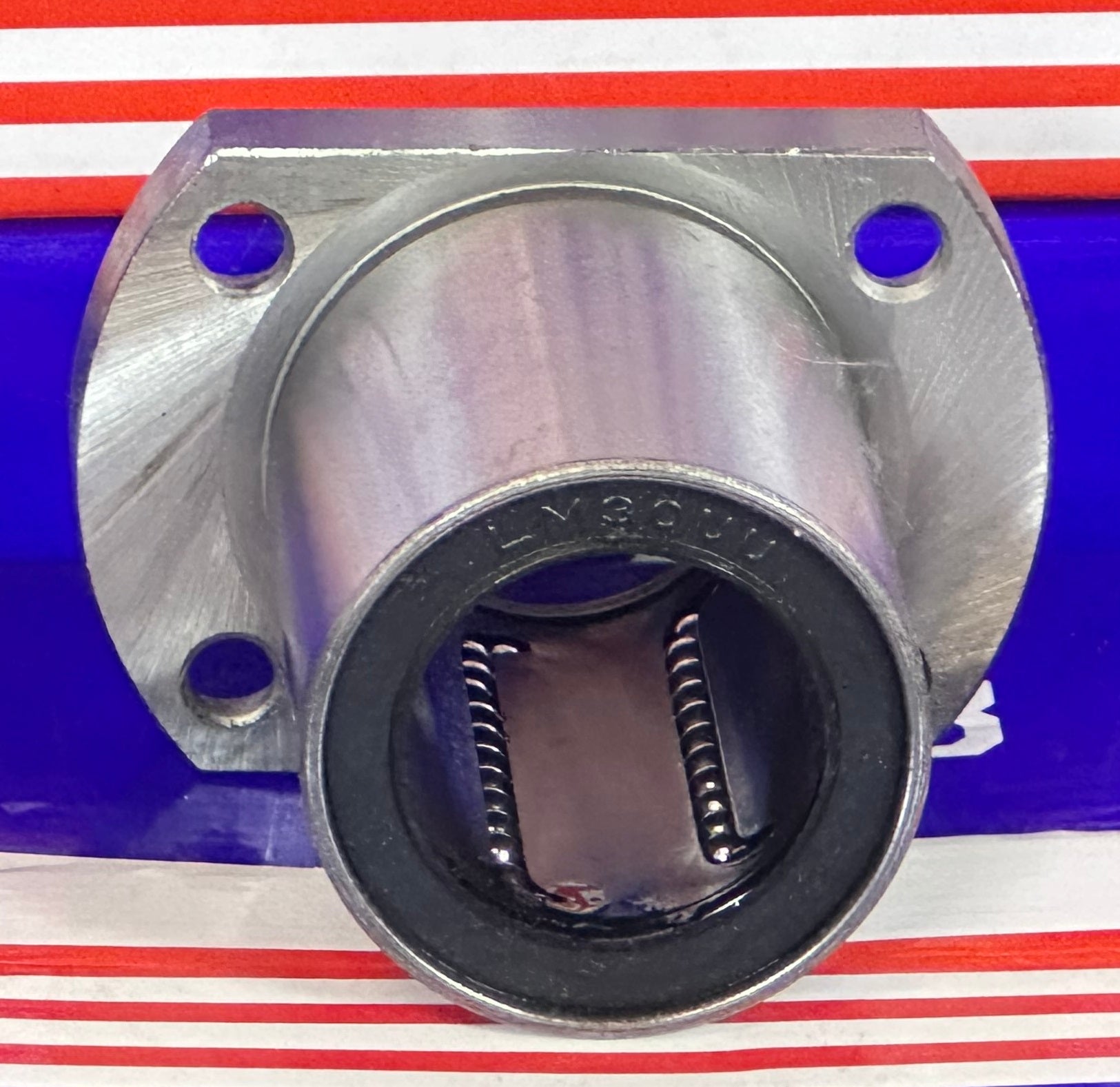

LMH30UU Square Flanged Linear Motion Long Ball Bushing, inner diameter is 30mm, outer diameter is 45mm, and length is 64mm.
  • LMH30UU Ball Bushing
  • Flanged Linear Motion Ball Bushing
  • Inner Diameter: 30mm
  • Outer Diameter: 45mm
  • Length: 64mm
  • Dynamic load rating: 980 N
  • Static load rating: 1569 N
  • Quantity: 1 Bearing
