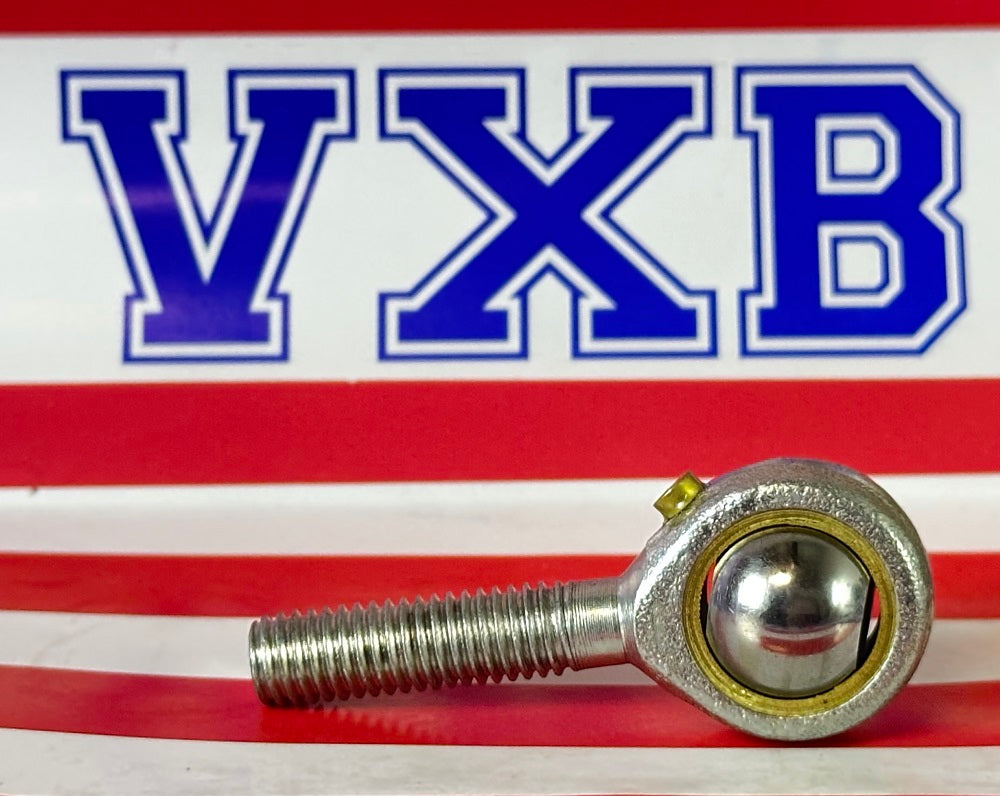

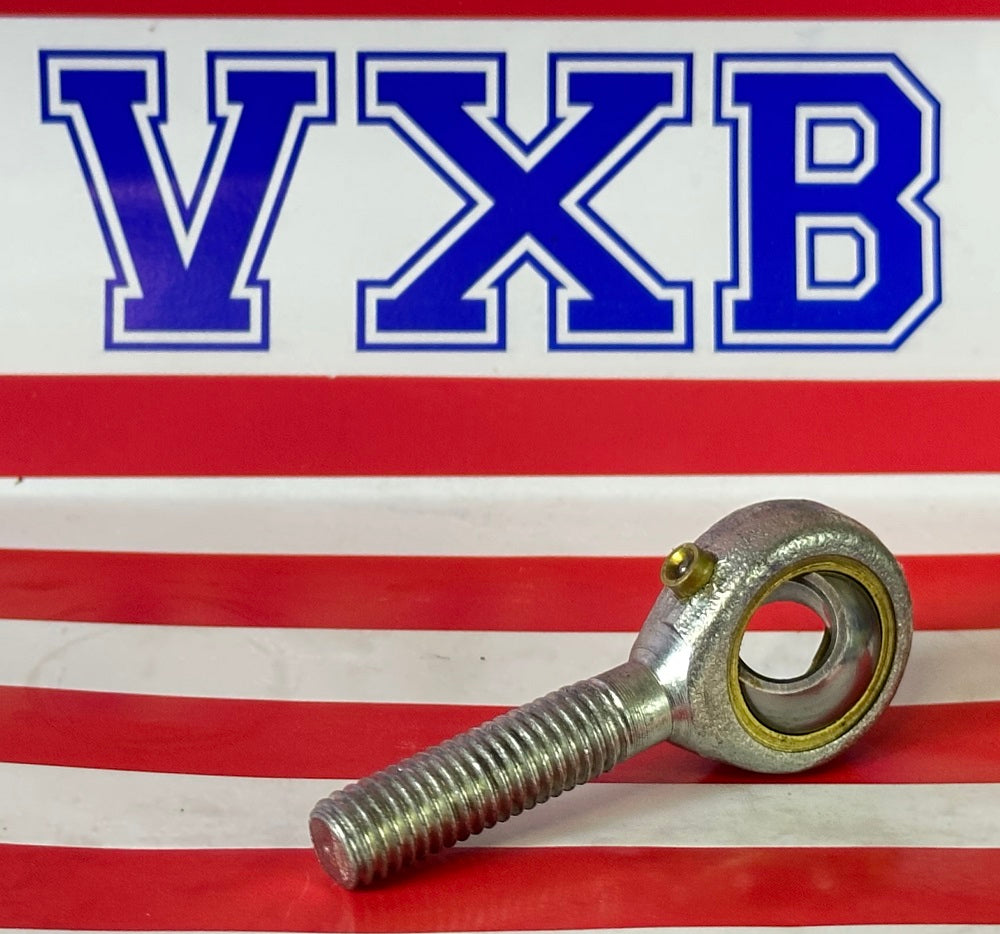

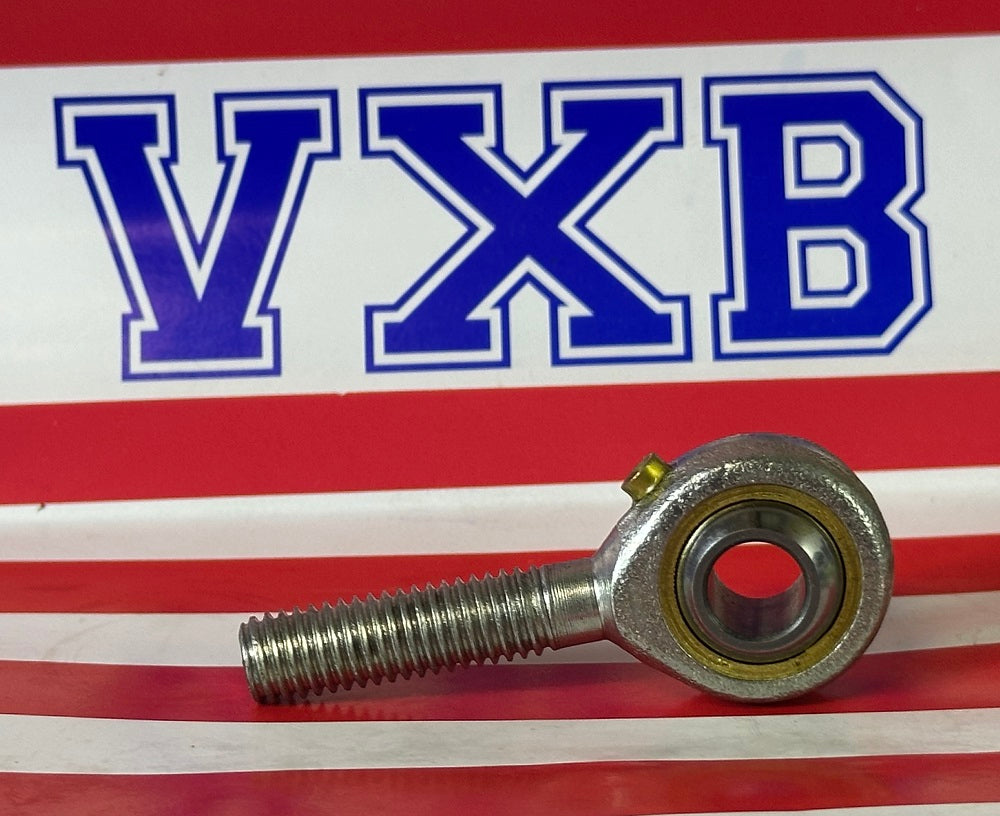

Male Rod Ends POS8, right hand Work with 8mm Shafts (0.3150" inch), measures an inner diameter of 8mm, thread size is M8x1.25, Here is the interchange designation in every brand:
- POS8 Bearings
- Rod Ends Heim Joints Bearings
- Quantity: Four Bearings
- Dynamic Load Rating: 710 KGF
- Static Load Rating: 880 KGF
- IKO: POS 8
- ELGES: GAKFR 8 PB
- Equal: SAKAC 8 M
- HIRSCHMANN: SM 8

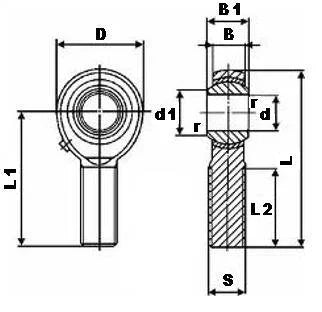

| Dimensions (mm) |
|---|
| d |
Thread
S |
D |
B |
B1 |
d1 |
L |
L1 |
L2 |
| 8 |
M8x1.25 |
22 |
9 |
12 |
10.4 |
53 |
42 |
25 |
|
