NB TWA16WUU 1 inch Ball Bushing - Linear Motion Slide Unit
NB TWA16WUU 1 inch Ball Bushing - Linear Motion Slide Unit
Couldn't load pickup availability

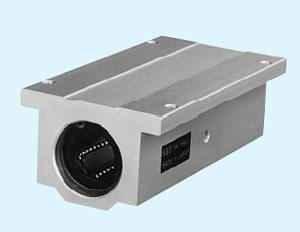

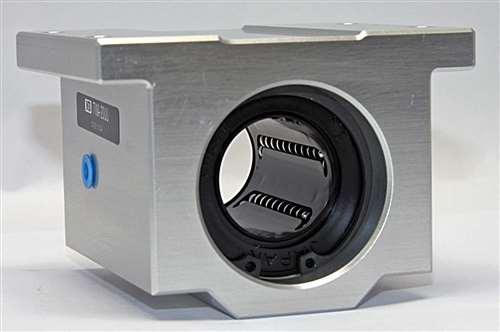

NB TWA16WUU Linear Motion Slide Unit
✔️ 1" Shaft Pillow Block - Double-Wide, Made in Japan
The TWA16WUU is a high-precision slide unit pillow block designed for 1-inch shafts, featuring a double-wide body for added stability. Manufactured by NB (Nippon Bearing) in Japan, it includes a steel retainer and is built to deliver accurate, low-friction linear motion in industrial automation, CNC systems, and mechanical assemblies.
✅ Shaft diameter: 1 inch
✅ Double-wide slide unit pillow block
✅ Precision linear bushing with steel retainer
✅ Dynamic load rating: 3,336 N
✅ Static load rating: 5,250 N
✅ Made in Japan by NB Linear Systems
✅ Ideal for inch-series motion applications

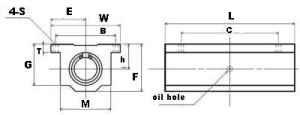

📏 Dimensions Table (Inches):
| Spec | Value |
|---|---|
| h | 3/16" |
| E | 1-5/8" |
| W | 3-1/4" |
| L | 6" |
| F | 2-3/16" |
| T | 3/8" |
| G | 1-15/16" |
| M | 2-3/8" |
| B | 2-7/8" |
| C | 4-1/2" |
| S | 7/32" |
💡 What is the purpose of a slide unit pillow block?
Slide units like the TWA16WUU are used in linear motion systems to provide smooth, guided movement with minimal friction - commonly found in CNC machinery, automation equipment, and robotics.
A top-tier choice for accurate, stable linear motion in precision-guided applications.
