Nachi

NU210 Nachi Cylindrical Bearing Steel Cage Japan 50x90x20 Bearing

NU210 Nachi Cylindrical Bearing Steel Cage Japan 50x90x20 Bearing

Regular price $124.91 USD
Regular price $131.48 USD Sale price $124.91 USD
Sale Sold out

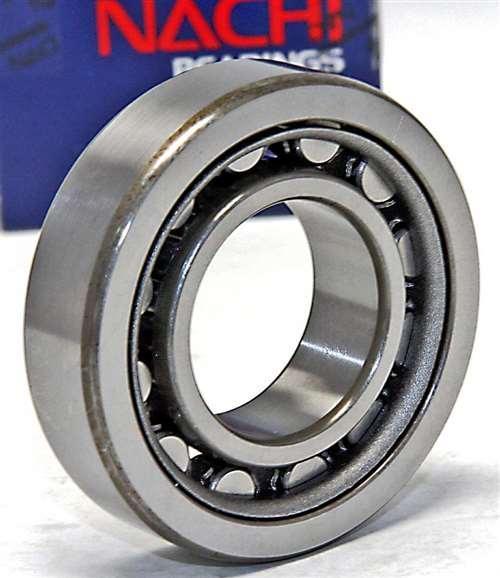

NU210 Nachi Cylindrical Roller Bearing
Steel Cage
50mm x 90mm x 20mm
Made in Japan


NU210 Nachi Cylindrical Roller Bearing, Steel Cage, Made in Japan, the NU210 inner diameter is 50mm, the NU210 outer diameter is 90mm, NU210 width is 20mm.

  • NU210 Cylindrical Roller Bearing
  • Nachi Cylindrical Roller Bearing
  • Cage: Steel Cage
  • Dimensions: 50mm x 90mm x 20mm/Metric
  • ID (inner diameter)/Bore: 50mm
  • OD (outer diameter): 90mm
  • Width: 20mm
  • Size: 50 x 90 x 20 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 48,000 N
  • Static load rating Cor: 51,000 N
  • Limiting Speed:
    • Grease Lubrication: 7,100 RPM
    • Oil Lubrication: 8,500 RPM
  • Made in Japan

Construction of this roller bearing type is the simplest of all radial roller bearings. This bearing type is often used in high-speed applications. Because the inner ring, outer ring, and rollers are in line contact, this bearing type has a large radial load capacity. Various Cylindrical roller bearing configurations are:N,NJ,NF,NU,RNU : integral ribs (flanges)
NH,NP,NUP,NUH : integral and loose ribs
NN,NNU : double-row bearings
Configurations having integral flanges or loose ribs on both the inner and outer rings can sustain a small amount of axial load. Since this bearing type supports axial loads as sliding action between the end of the rollers and flange faces, axial loading is limited. Double-row Cylindrical roller bearings are used for high-speed, high-accuracy applications such as; main spindle support for lathes, milling machines, and machining centers. Radial clearance of tapered-bore bearings can be adjusted during mounting of the bearing(s) onto the mating journal. Standard cages are pressed steel or polyamide resin. Machined cages of high-strength brass are used for bearings of large dimension or for high-speed applications.
