SSCMS-M5-16 NBK Cross Recessed Truss Head Captive Screws Made in Japan

SSCMS-M5-16 NBK Cross Recessed Truss Head Captive Screws Made in Japan

$19.99 USD
$31.00 USD $19.99 USD
Sale Sold out

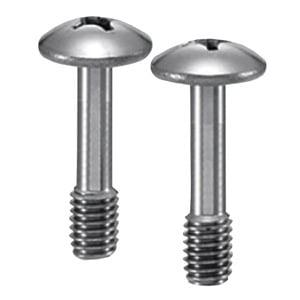

SSCMS-M5-16 NBK Cross Recessed Truss Head Captive Screws
Made in Japan
One Screw

Characteristics:
  • The shape of the screws prevent them from falling out and loss. They are intended to fix protective and inspection covers that are frequently installed and removed.
  • These screws have large heads that decorate attachment surfaces beautifully.
  • These items comply with CE marking requirements.√¢‚Ä°‚ÄôUse the NBK Captive Screw Series to be comply with CE
Application:
Machine tools, food industry machines, and electrical and electronic equipment

Precautions for Use:
  • Screw hole inner diameter on the cover side shall be at least the dc dimension.
  • The cover thickness should be 0.8 mm or above.

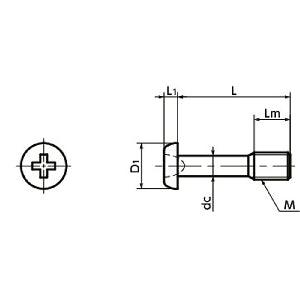

Part Number M L Lm D1 L1 dc Quantity Per Pack
SSCMS-M5-16-NBK M5 16MM 6MM 11.8MM 3.1MM 3.9MM 1
