UC201-12mm-BLK Oxide Plated Plated Insert 12mm Bore Bearing

UC201-12mm-BLK Oxide Plated Plated Insert 12mm Bore Bearing

Regular price $39.99 USD
Regular price $61.00 USD Sale price $39.99 USD
Sale Sold out

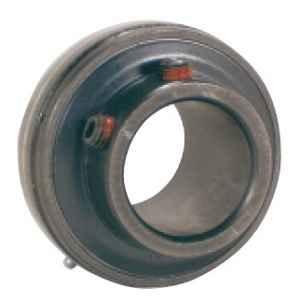

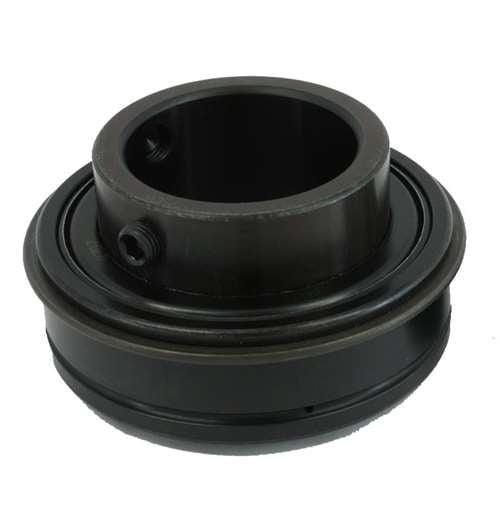

UC201-12mm-BLK Oxide Plated Insert Ball Bearing
12mm Inner Diameter


UC201-12mm-BLK Oxide Plated Insert Ball Bearing, bearing is wide inner ring with spherical outer ring, bearing is relubrication groove with oil hole on set screw side, bearing is anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A set screws.

  • UC201-12mm-BLK Bearing
  • Oxide Plated Insert Ball Bearing
  • Shaft Diameter: 12mm
  • Dynamic load rating: 12800 N
  • Static load rating: 6272 N
  • Quantity: 1 Bearing

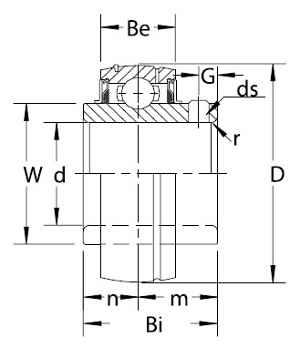

Dimensions (mm)
D Bi Be r n m G W ds(Unf-Thread)
47 31 15 1 12.7 18.3 5 28.7 M6xP1.0
