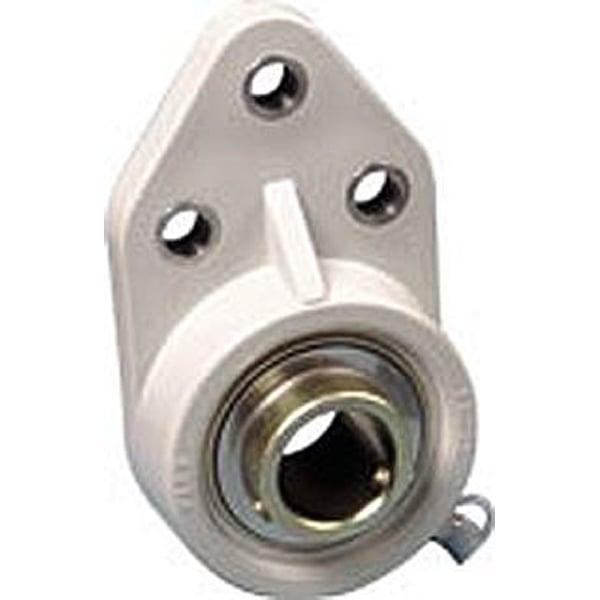

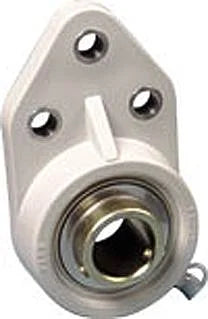

ZUCFB202-15m-PBT Thermoplastic Flange Bracket 3 Bolt Ball Bearing, bearing is Zinc chromate Plated insert, bearing has solid base housing construction, bearing is wide inner ring with set screws, bearing is relubricatable unit with anti-rotation pin, bearing has supplied with water and wash resistant mobilgrease.
- ZUCFB202-15m-PBT Bearing
- Thermoplastic Flange Bracket 3 Bolt
- Shaft Diameter: 15mm
- Bolt Size: 5/16" inch
- Bearing No: ZUC202-15mm
- Housing No: FB-204-HA-PBT
- Quantity: 1 Bearing
- Ball Bearing

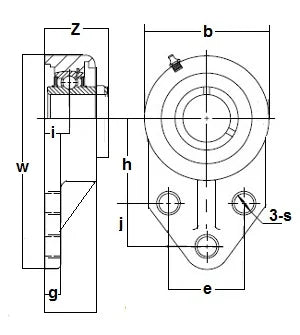

| Dimensions (mm) |
|---|
| w |
A |
b |
D |
i |
l |
s |
g |
h |
j |
e |
Z |
| 109.5 |
79.4 |
60.3 |
60.3 |
15.9 |
28.2 |
9.9 |
9.5 |
42.9 |
22.2 |
38.1 |
34.2 |
|
