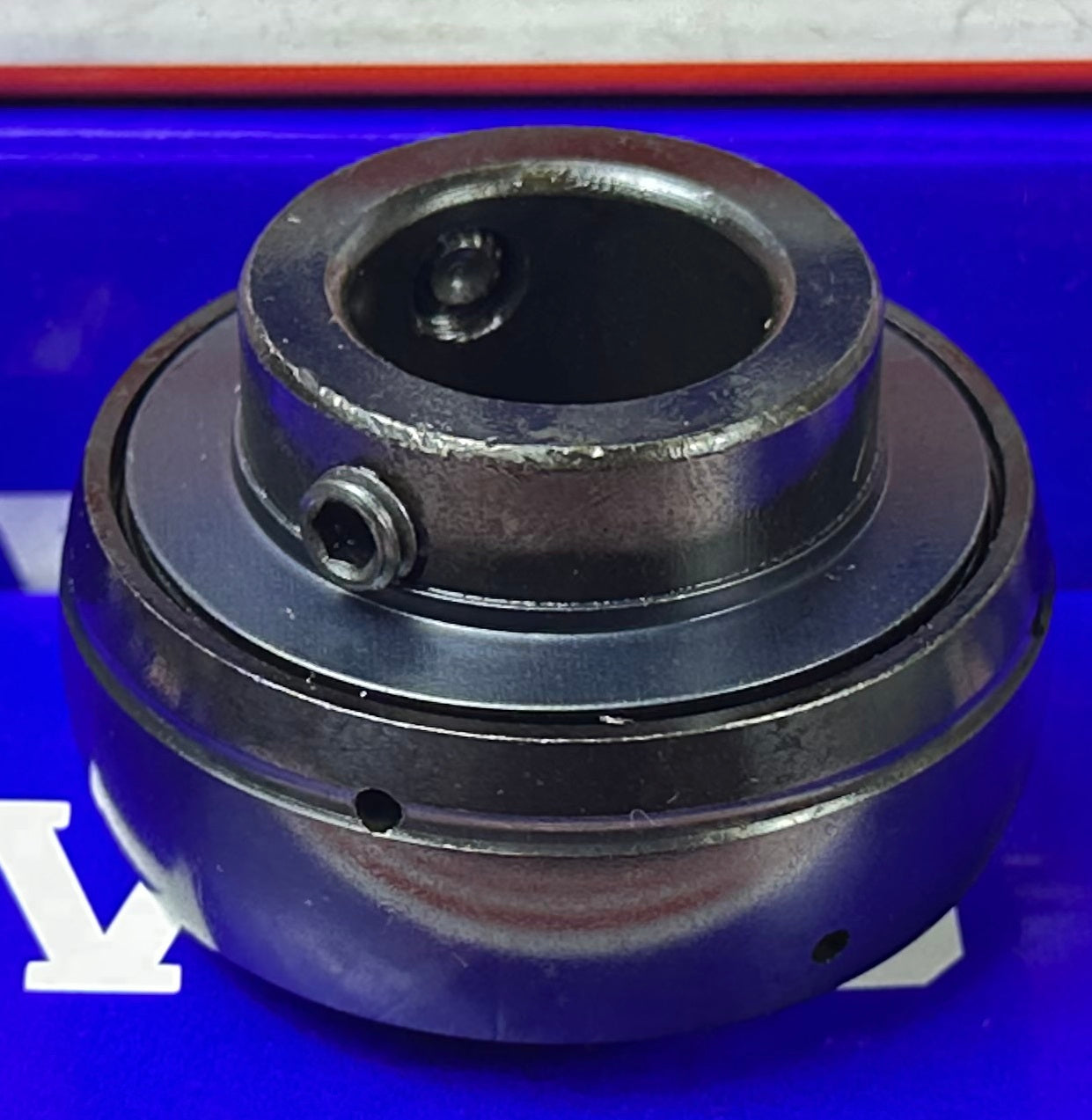

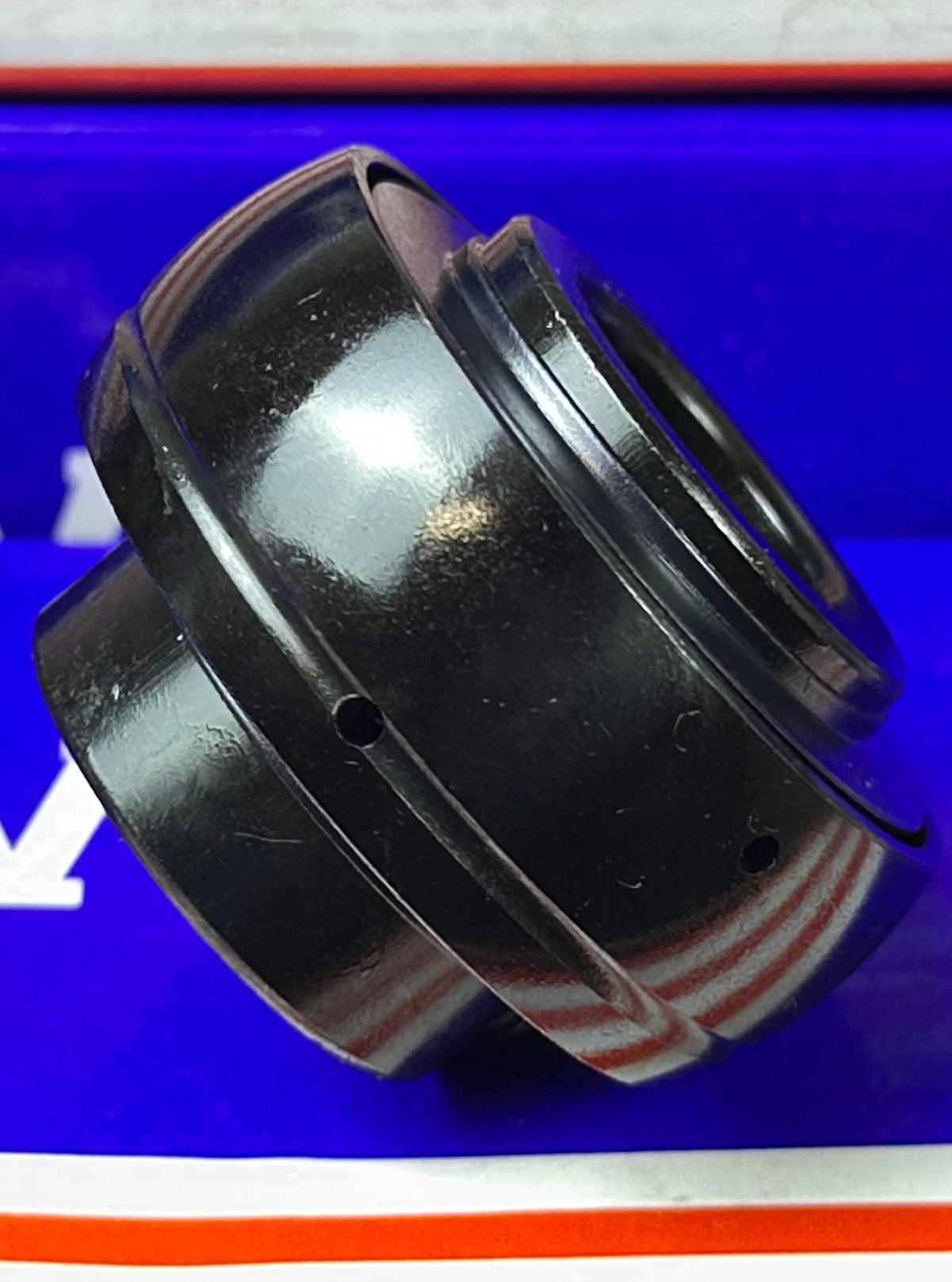

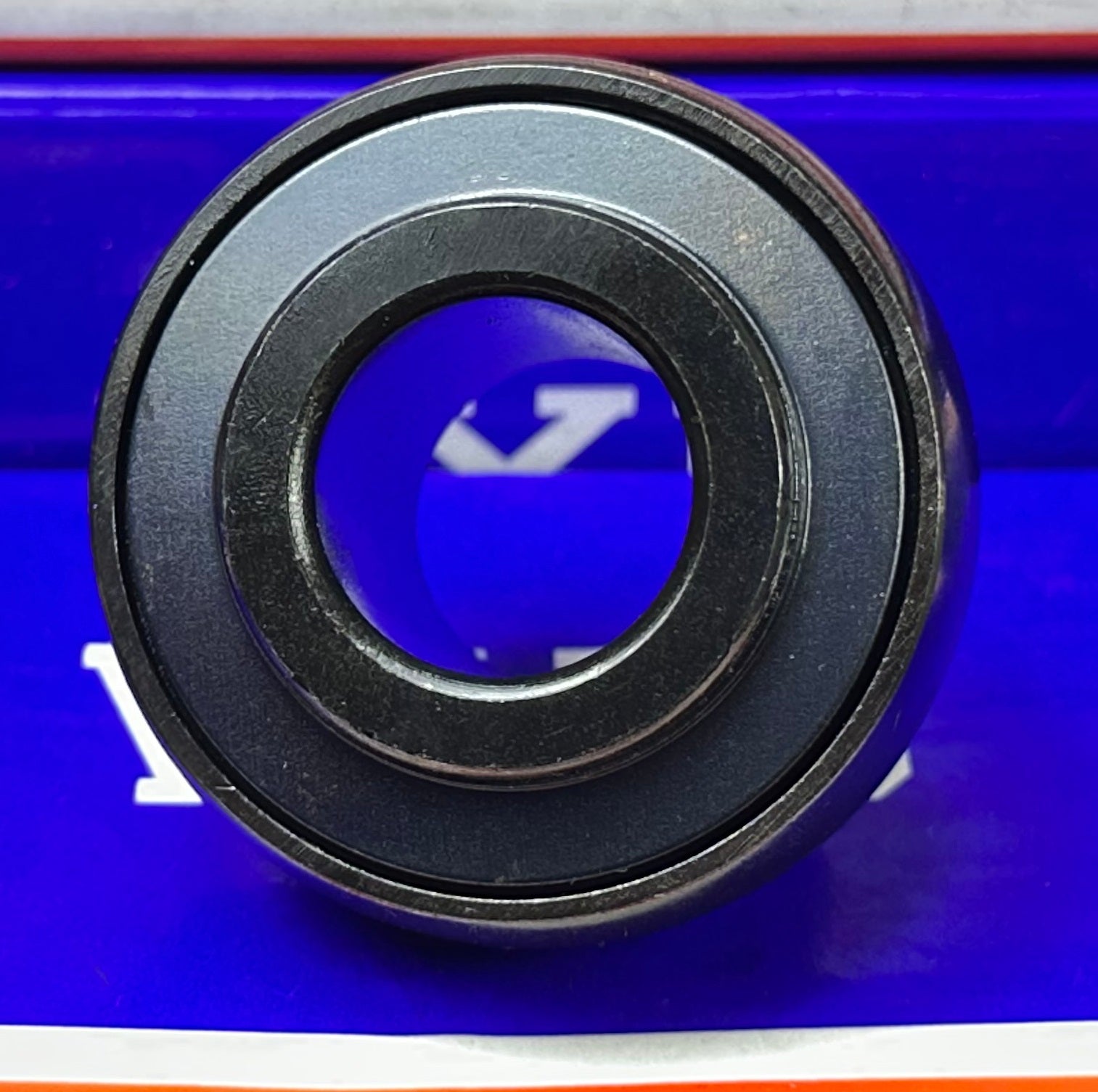

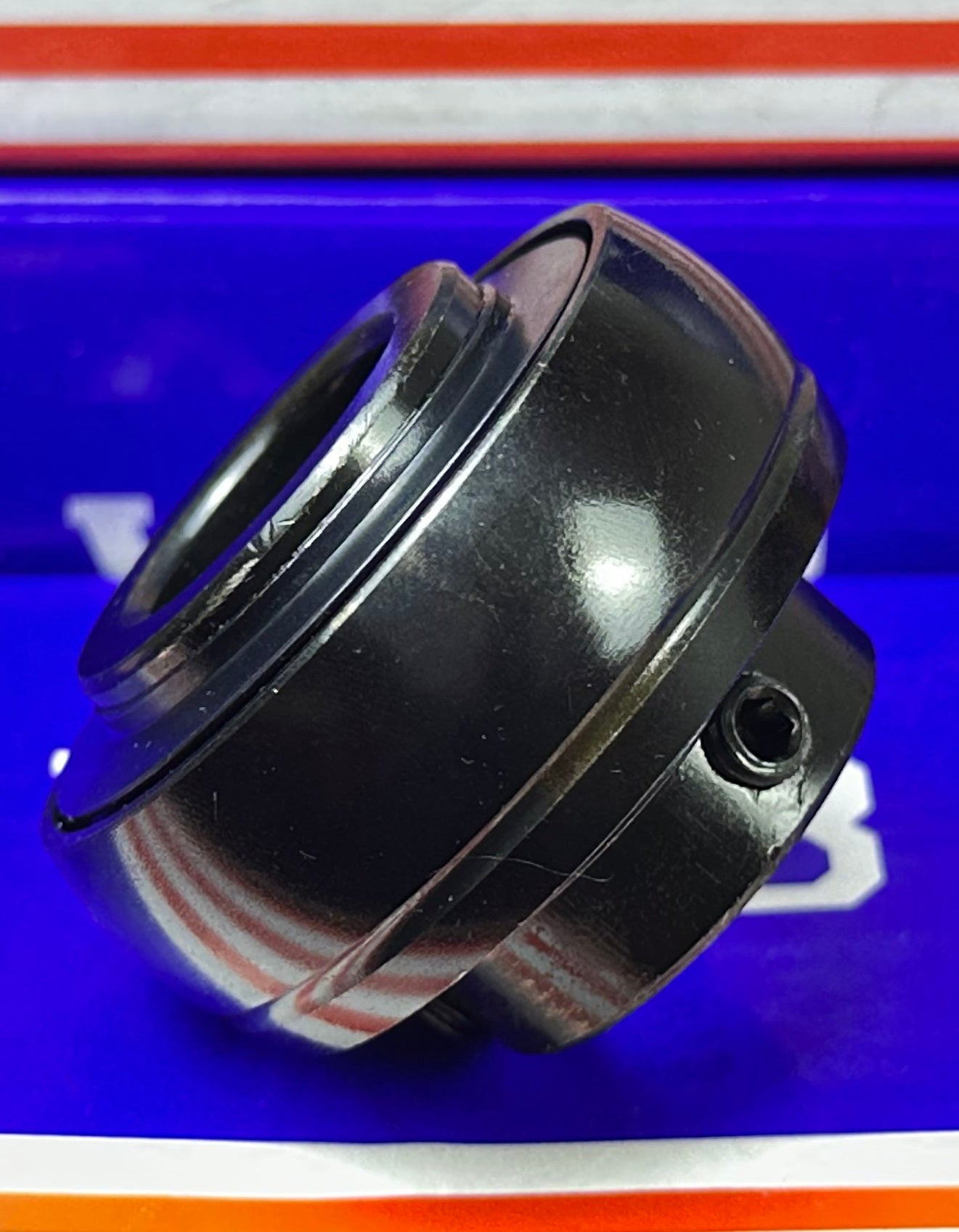

UC204-12-BLK Oxide Plated Plated Insert 3/4 Bore Bearing
UC204-12-BLK Oxide Plated Plated Insert 3/4 Bore Bearing
Preço normal
$34.99 USD
Preço normal
$54.00 USD
Preço promocional
$34.99 USD
Preço unitário
/
por
Não foi possível carregar a disponibilidade de retirada.
|
UC204-12 BlacK Oxide Plated Insert Ball Bearing 3/4" inch Inner Diameter |
|
UC204-12-BLK Oxide Plated Insert Ball Bearing, bearing is wide inner ring with spherical outer ring, bearing is relubrication groove with oil hole on set screw side, bearing is anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A set screws. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.
|
| Dimensions (inches) | ||||||||
|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | r | n | m | G | W | ds(Unf-Thread) |
| 1-55/64" | 1-7/32" | 19/32" | 0.059" | 1/2" | 23/32" | 0.197" | 1-1/8" | 1/4-28x1/4 |
