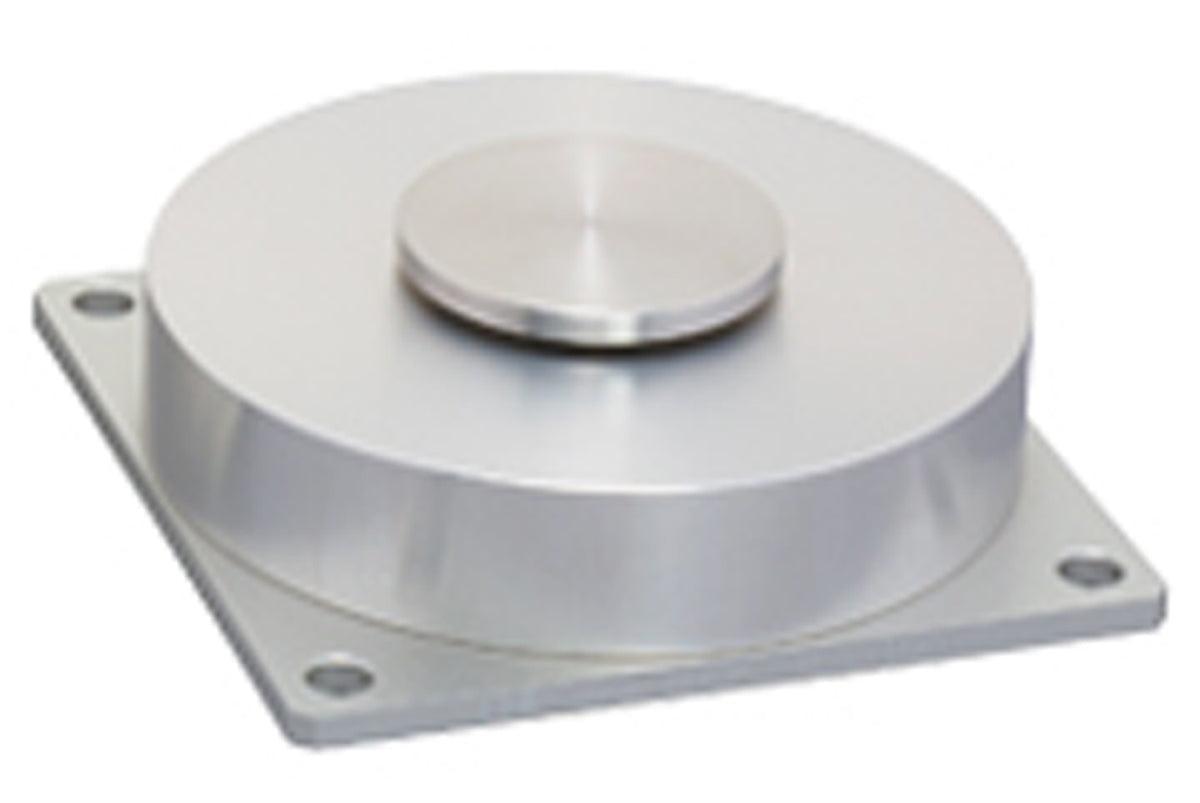

ILS-150 Glass Substrate Cassette Positioning Unit IGUCHI Japan

ILS-150 Glass substrate cassette positioning unit IGUCHI made in Japan. ILS Series positioning stages upper plate rolls smoothly in any 360 degree direction. Despite their compactness, they also can carry heavy loads than conventional type and set the substrate cassette at a desired position

• ILS-150-IGUCHI
• Moving Distance: √Ǭ±15mm
• Case : Aluminum+Alumite
• Fixing Flange : Aluminum+Alumite
• Moving Stage : SUS304
• Load Capacity : 150kgf
• Quantety : ONE
