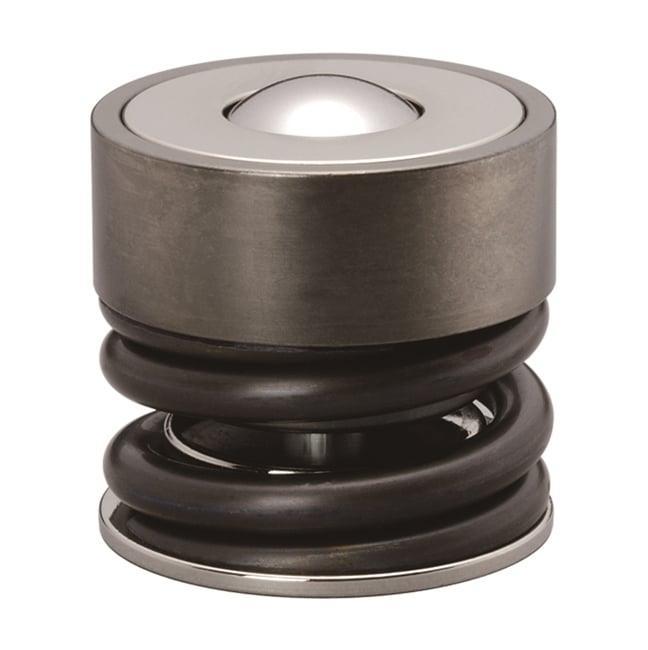

IS-25BK-08 IGUCHI Carbon Steel Spring loaded ball transfers enables self-adjustment Ball Transfer IGUCHI - Japan

IS-25BK-08 IGUCHI Carbon Steel Spring loaded ball transfers enables self-adjustment Ball Transfer IGUCHI - Japan

$280.99 USD
$430.00 USD $280.99 USD
Rea Slutsåld
IS-25BK-08 IGUCHI Carbon Steel Spring loaded ball transfers enables self-adjustment Ball Transfer IGUCHI - Japan
  • Features:
    • Spring-loaded ball transfers enable self-adjustment for even load distribution
    • Applications include shearing machines, presses, and molding machines, die setting, tool bases, press brakes.
    • Spring durability over one million times. (Spring can be replaced)
IS-BK spring loaded ball transfers are used for press machine die setting and die removal. With the built-in spring, convey, position, and clamp the die on the press bed by retracting mechanism without replacing the ball transfers from bolster.

  • IS-25BK-08
  • Ball Transfer Unit
  • Setting Pressure Power : 80 kgf (784 N)
  • Maximum Pressure Power : 110 kgf (1078 N)
  • Spring Shrinkage : 2mm
  • Ball Size : √è‚Ć1" (25.4mm)
  • Body : SCM415
  • Large Ball : SUJ2
  • Small Balls : SUJ2
  • Cap : S45C
  • Spring : SWP-B
  • Quantity: One
