TRF8GUUE NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing

TRF8GUUE NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing

$120.99 USD
$185.00 USD $120.99 USD
Rea Slutsåld

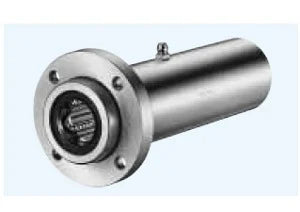

TRF8GUUE NB Triple Wide Round Flange Pilot End Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

TRF8GUUE NB Triple Wide Round Flange Pilot End Type Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • TRF8GUUE NB Bearing
  • Linear Slide Bush
  • Bearing Inner Diameter: 8mm
  • Retainer Material: resin
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 431 N
  • Static Load Rating Cor: 784 N

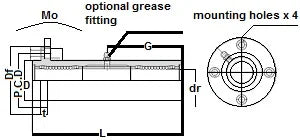

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
8 0-12 19 0-21 66 40 6 29 4.5 x 7.5 x 4.1
