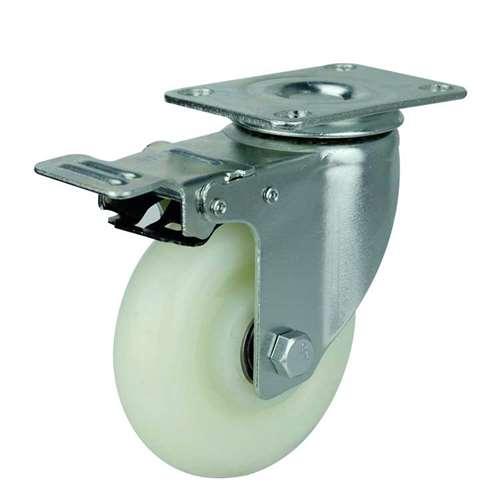

3" Caster Wheel - Brake Polypropylene Top Plate

3" Inch Caster Wheel 176 pounds Swivel and Upper Brake Polypropylene Top Plate

VXB004075PPB

Medium Duty

Wheel Diameter= 75mm

Wheel Width= 30mm

Wheel Diameter= 3" Inch = 75mm

Overall Height= 105mm

Overall Height Inch= 4.134"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Polypropylene

Tire= Polypropylene

Bearing type= Double ball bearing

Load Capacity= 176 lb

Mounting= Swivel and Upper Brake

Temperature Range= -40 to 180 F

Make your life easier, have big objects easier to Maneuver using the VXB004075PPB Wheel Caster. Diameter size of the caster wheel has a metric standard 75mm which is equal to 2.953" inch with imperial units. The wheel has a width of 30mm=1.181" inch. Overall height of the wheel caster is 105mm = 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Low drag was achieved by a Polypropylene core on a Polypropylene tire spinning freely with a Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 176 lb with a Swivel and Upper Brake type. The caster temperature range = -40 to 180 F. Buy our VXB004075PPB, we wish all the best.
