Nachi

5309 Nachi Angular Contact Bearing - Double Row - Japan 45x100x39.7 Bearing

5309 Nachi Angular Contact Bearing - Double Row - Japan 45x100x39.7 Bearing

$126.38 USD
$133.03 USD $126.38 USD
促销 售罄

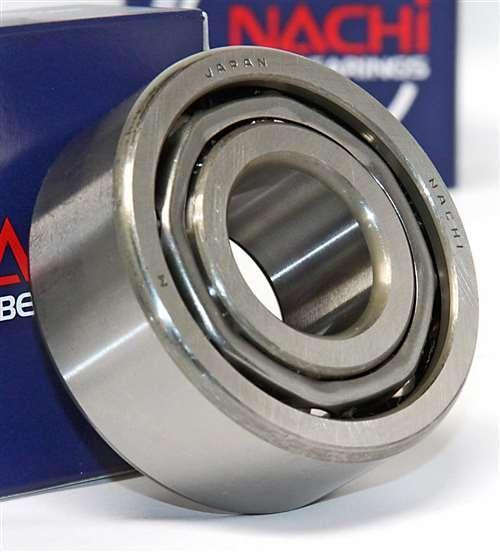

5309 Nachi Angular Ball Bearing
45mm x 100mm x 39.7mm
Made in Japan

5309 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 45mm, outer diameter is 100mm and width is 39.7mm.

  • 5309 Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 45mm x 100mm x 39.7mm/Metric
  • ID (inner diameter)/Bore: 45mm
  • OD (outer diameter): 100mm
  • Width: 39.7mm
  • Size: 45 x 100 x 39.7 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 76,500 N
  • Static load rating Cor: 56,500 N
  • Limiting Speed:
    • Grease Lubrication: 5,000 RPM
    • Oil Lubrication: 6,700 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
