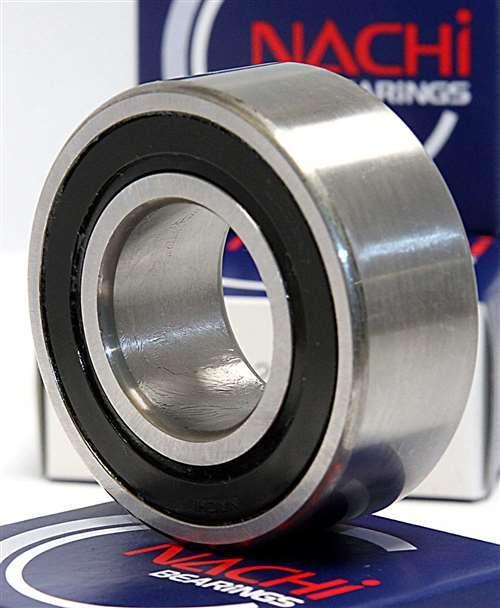

5312-2NS Nachi Angular Contact Bearing - Double Row - 60x130x54 Bearing

5312-2NS Nachi Angular Contact Bearing - Double Row - 60x130x54 Bearing

$417.00 USD
$1,107.00 USD $417.00 USD
促销 售罄
5312-2NS Nachi Angular Ball Bearing
Double Sealed
60mm x 130mm x 54mm
Made in Japan

5312-2NS Nachi Double Row Angular Ball Bearing, bearing is Double Sealed, Made in Japan, inner diameter is 60mm, outer diameter is 130mm and width is 54mm.

  • 5312-2NS Nachi Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Double Sealed
  • Dimensions: 60mm x 130mm x 54mm/Metric
  • ID (inner diameter)/Bore: 60mm
  • OD (outer diameter): 130mm
  • Width: 54mm
  • Size: 60 x 130 x 54 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 128,000 N
  • Static load rating Cor: 101,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,800 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
